Fiber Optic Rotary Joint (FORJ)
DWFORJ fiber optic rotary joint (FORJ) also known as fiber optic slip ring or fiber optical rotary connector. And the core of joint contains precision optical components to guide the light from one fiber to another across the rotating interface.
FORJs transfer light signals between components connected by unlimited 360° rotation. Especially for large capacity data and signal and without interruption. Since no electrical contacts to wear out, FORJs generally require more less maintenance compared to traditional electrical slip rings.
Optical fiber rotary joint can combine with traditional electrical slipring to form optoelectronic hybrid combiner rings, then transmitting power and high-speed data.
Please contact us immediately if you have special needs, our sales engineers can recommend slip ring models or design customized slip rings for you.
FORJ Model List
| Model | No. of FORJ | No. of electric | Wavelength range | Insertion loss | Return loss | MAX. RPM |
|---|---|---|---|---|---|---|
| WDFORJA | 1 channels | / | 650-1650nm | ＜1.2dB (23℃) | ≥35dB | 2000 rpm |
| WDFORJB | 1 channels | / | 650-1650nm | ＜1.2dB (23℃) | ≥35dB | 2000 rpm |
| WDFORJC | 2-12 channels | / | 850-1550nm | ＜3.5dB (23℃) | ≥40dB | 300 rpm(optional) |

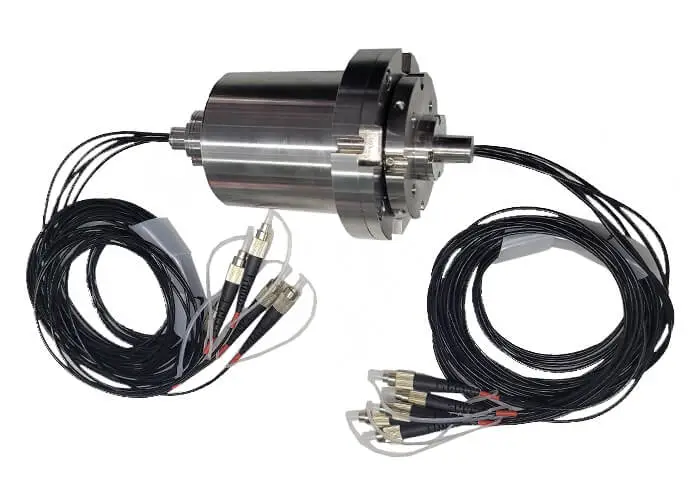

| WDFORJM | 2-42 channels | / | 850-1550nm | ＜4.0dB (23℃) | ≥40dB | 300 rpm |
| WDFORJD033 | 1 channels | 1-24 circuits | 650-1650nm | ＜1.2dB (23℃) | ≥40dB | 300 rpm |
| WDFORJD069 | 2-7 channels | 1-2 circuits | 850nm/1310nm/1550nm | ＜3.5dB (23℃) | ≥40dB | 300 rpm |
| WDFORJD119 | 2-8 channels | 1-72 circuits | 850nm/1310nm/1550nm | ＜4.0dB (23℃) | ≥40dB | 300 rpm |
Features
● The transmission rate can reach over 100Gbit/s, and a maximum of 42 channels
● Reliability, as a fact maintain signal integrity over long periods and under harsh conditions
● Extremely low insertion loss and extremely high return loss
● Fiber optic rotary joint waterproof and dustproof ability for options
Options
If you want to know more about fiber optic rotary joint, this article written by WayDun technician may help you.
Of course, just send us an email with inquiry.
We focus on custom slip ring and rotary joint for 15 years. Cases can be provided for reference. Here is a guide for How does a fiber optic rotary joint work?
We are very good at one-to-one communication for complex slip ring or rotary joint products, based on our experience. If you can’t find a suitable supplier for your custom case, please try us.
