CN Semi Embedded Rotary Union

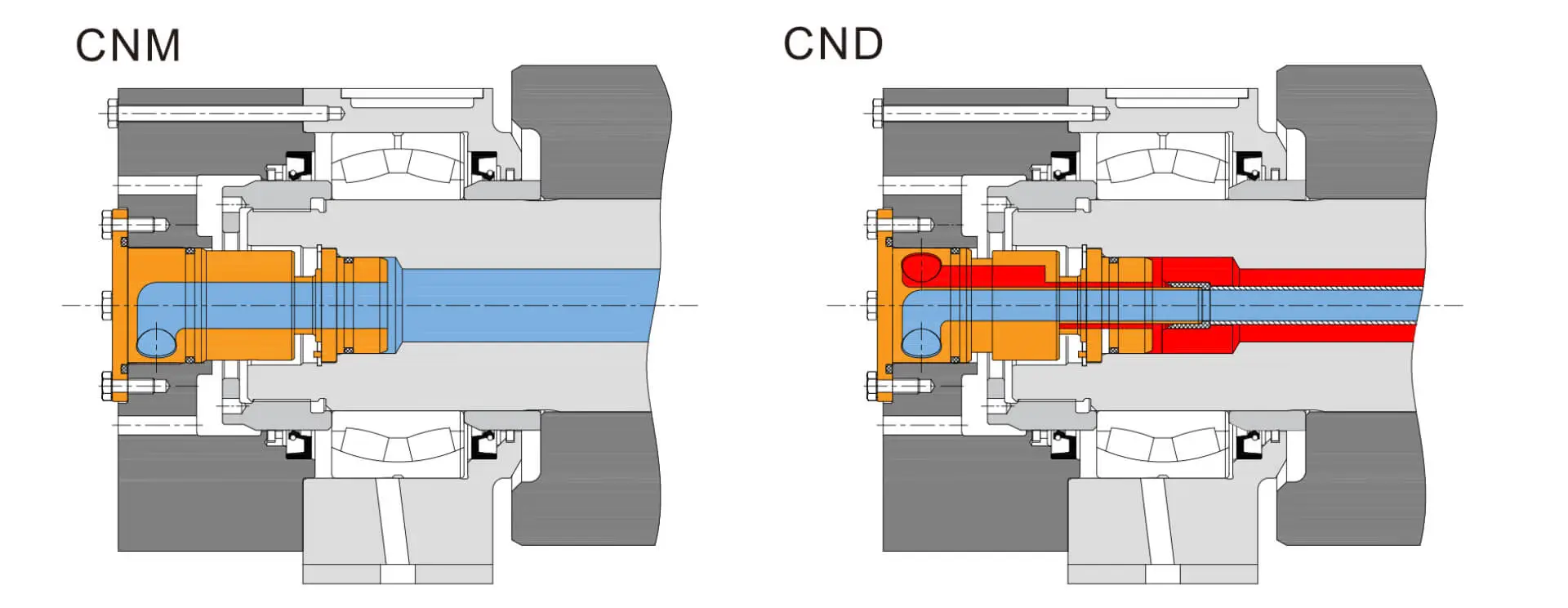

● Semi Embedded Rotary Union inside the bearing seat for easy on-site disassembly
● Balanced mechanical seal structure, long service life
● Silicon carbide sealing ring structure, resistant to impurities; the sealing package structure can be disassembled at the production site, saving 60% of maintenance costs
● The rotary union floating structure, can withstand ±0.5mm shaft head runout
●Multi-spring structure, stable compensation spring force
● Maximum 10mm axial compensation for thermal expansion of cooling rollers
● The overall stainless steel material can be used in water-filled environments for a long time
Please contact us immediately if you have special needs, our sales engineers can recommend slip ring models or design customized slip rings for you.
Technical Parameter
Max Speed:100 r/min
Temperature:-30℃～+120℃
Max Pressure:1.1Mpa
Media: Water
CN Rotary Union Notes
● Semi embedded rotary union/rotary joint
● For high temperature, please reach out to WAYDUN for further information
