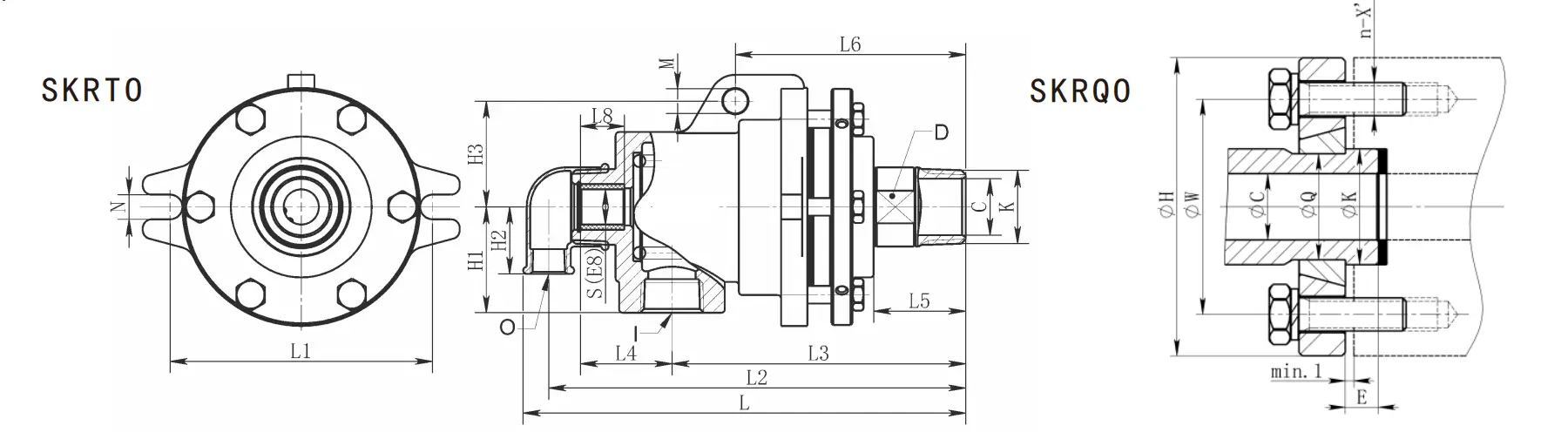

SK Rotary Union Series
● SK rotary union with anti-spherical sealing design, four times stronger than ordinary spherical sealing rings
● Double cylindrical oil-free bearing support ensures smoother rotation and can be used in equipment with greater vibrations
● Rotary union built-in anti-impurity structure, long service life
● High-temperature-resistant alloy spring and sharp-immersed spherical sealing ring can be used in high-temperature heat transfer oil conditions for a long time
● Without maintenance, no need to add lubricating oil
Please contact us immediately if you have special needs, our sales engineers can recommend slip ring models or design customized slip rings for you.

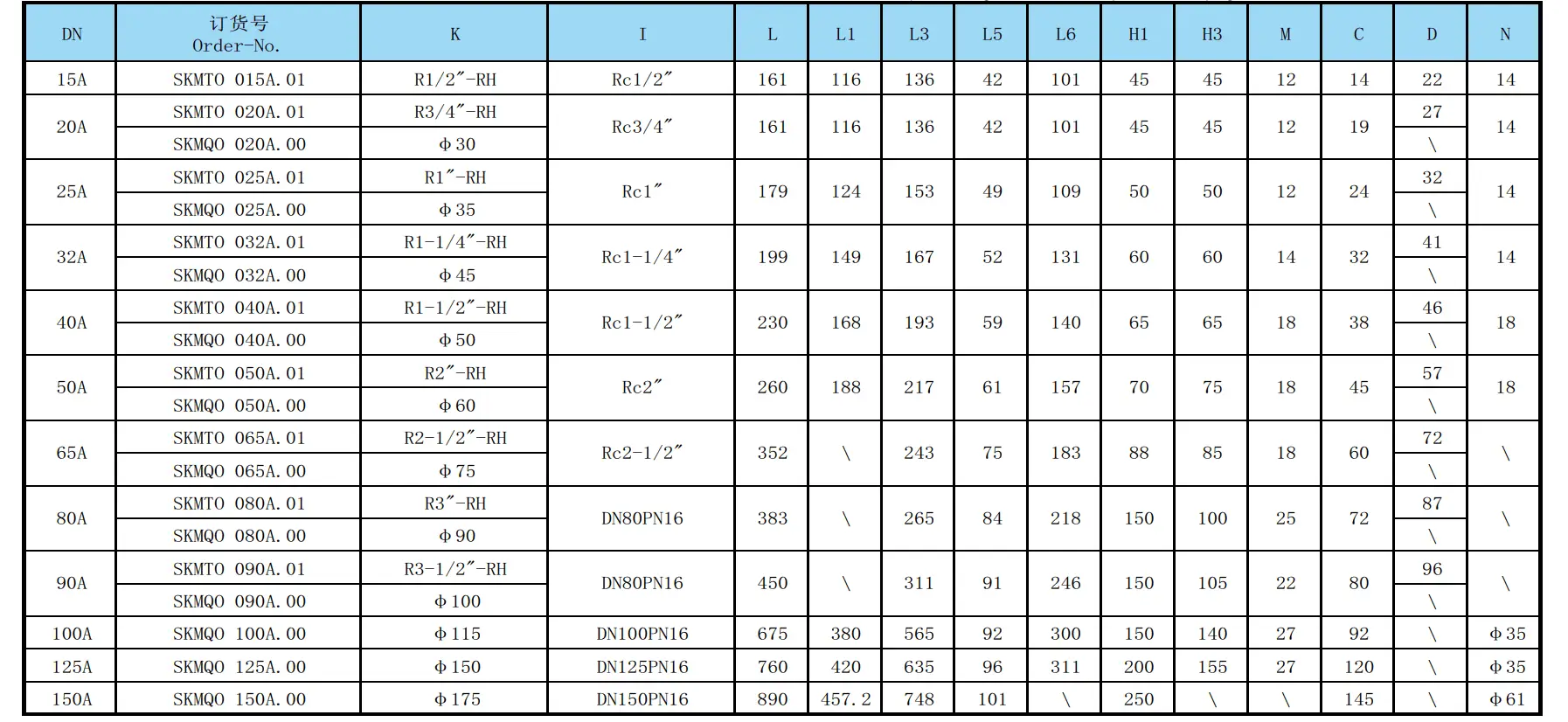

Technical Parameter
Max Speed:450 r/min
Temperature:-30℃～+355℃
Max Pressure:3.5Mpa
Media: Hot Oil
SK rotary union should be avoided to work under several maximum limit conditions at the same time. For detailed technical parameters, such as diameter, tachometer. Please consult with WAYDUN technology department.
Notes
● The inlet and outlet pipes must be connected with metal hoses
● The installed rotary joint must be able to freely move forward and backward and swing left and right at a certain angle. It is strictly prohibited to fix the rotary joint firmly
● The threads of the two-way fixed inner pipe are all right-hand, even if the outer pipe “K” is a flange or left-hand thread connection
● Please contact us when using other media
