Combined Slip Ring

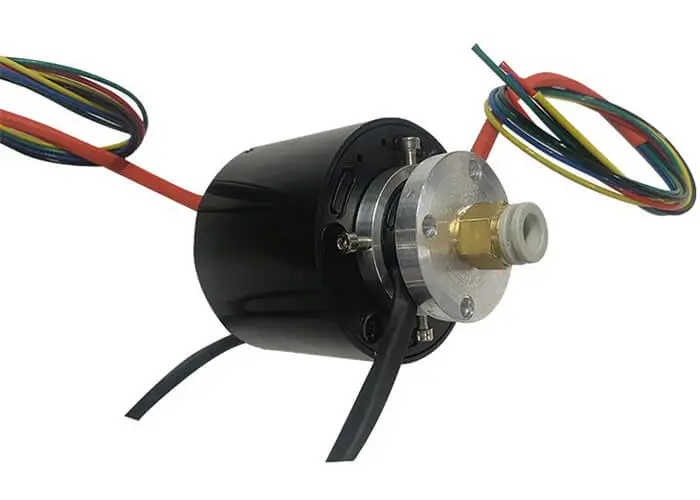

The combined slip ring integrated pneumatic rotary joint with electrical. As well as liquid, light and signals.
It integrates various functionalities into one unit, such as electrical connections. Reduce multiple separate connectors and improved system efficiency. Combination slip rings are often customized to meet specific needs, and providing reliable performance in applications such as robotics, turntable, industrial machinery and cylindrical Li-ion battery filling machine.
Please contact us immediately if you have special needs, our sales engineers can recommend slip ring models or design customized slip rings for you.
Combined Slip Ring Model List
| Model | Channels | Circuits (2A) | Negative Vacuum | Max. Pressure | Max. Speed |
|---|---|---|---|---|---|
| MQR2-S12 | 2 Passages, Port M5 | 12 Circuits | -1.5kPa | 1Mpa | 300rpm |
| MQR2-S24 | 2 Passages, Port M5 | 24 Circuits | -1.5kPa | 1Mpa | 300rpm |
| MQR4-S12 | 4 Passages, Port M5 | 12 Circuits | -1.5kPa | 1Mpa | 300rpm |
| MQR4-S24 | 4 Passages, Port M5 | 24 Circuits | -1.5kPa | 1Mpa | 300rpm |
| MQR6-S12 | 6 Passages, Port M5 | 12 Circuits | -1.5kPa | 1Mpa | 300rpm |
| MQR6-S24 | 6 Passages, Port M5 | 24 Circuits | -1.5kPa | 1Mpa | 300rpm |
| MQR8-S12 | 8 Passages, Port M5 | 12 Circuits | -1.5kPa | 1Mpa | 300rpm |
| MQR8-S24 | 8 Passages, Port M5 | 24 Circuits | -1.5kPa | 1Mpa | 300rpm |
| MQR12-S12 | 12 Passages, Port M5 | 12 Circuits | -1.5kPa | 1Mpa | 300rpm |
| MQR12-S24 | 12 Passages, Port M5 | 24 Circuits | -1.5kPa | 1Mpa | 300rpm |
| MQR16-S12 | 16 Passages, Port M5 | 12 Circuits | -1.5kPa | 1Mpa | 300rpm |
| MQR16-S24 | 16 Passages, Port M5 | 24 Circuits | -1.5kPa | 1Mpa | 300rpm |
Features
● Compact design
● Without maintenance
● Operating smoothly and reliability
● Extremely low electrical noise
● Convenient to assembly
● Long working life
Options
● Operation speed, current, voltage
● Type of Flange (or without flange)
● Connector
● No. of circuits
● Housing material of integrated slip ring
● Protection level of combined Slip Ring
● Power ring with 5A, 10A, 20A and 30A is available
● Compatible with FORJ, RF, digital signal, analog signal, data bus protocols, Ethernet signal and so on
Of course, regarding combined slip ring integrated pneumatic rotary joint just send us an email with inquiry.
We focus on custom slip ring and rotary joint for 15 years. Cases can be provided for reference.
We are very good at one-to-one communication for complex slip ring or rotary joint products, based on our experience. If you can’t find a suitable supplier for your custom case, please try us.
