Slip Ring Customized Solution

Slip Ring Customized Solution is the advantage of WAYDUN Technology. We focuses on the customization of electrical slip ring and rotary joint. Our core engineers and sales have over fifteen years of relevant industry experience.
We have a lot of practical cases, maybe our experience can help you solve the problem！

◆ MAX 360 circuits, MAX 4,000A, MAX 10,000V
◆ MAX 12,000 rpm
◆ Optional for -50 ℃~+240 ℃
◆ Optional for high protection IP68
◆ Extremely large or small sizes
◆ Mix current and signal transmission (Canbus, Ethernet, HDMI, SDI, thermocouple, USB, RS, etc.)

Please contact us immediately if you have special needs, our sales engineers can recommend slip ring models or design customized slip rings for you.

Contact Us

Slip Ring for Combined Power and Signal

48 wires turntable slip ring
Number of circuits: 48
Voltage: 120VAC/VDC
Current: 3A power+2A signal
Working speed: 0~250rpm
HDMI slip ring
Number of circuits: 10
Voltage: 48VAC/VDC
Current: 2-channel 7A+7-channel signal+1-channel HDMI
Working speed: 0~250rpm

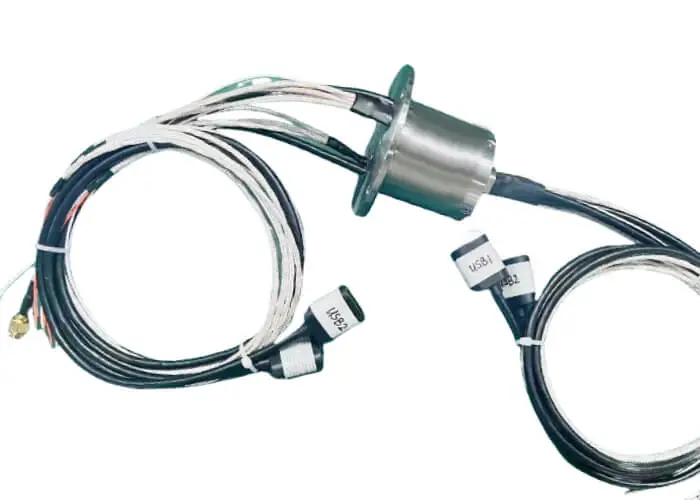

USB slip ring
Number of circuits: 10
Voltage: 24VAC/VDC
Current: 7 channels 4A+2 channels USB signal+1 channel SDI(1080P@60Hz)
Working speed: 0~250rpm
SDI slip ring
Number of circuits: 46
Voltage: 28VAC/VDC
Current: 2 channels 6A+12 channels 3A+30 channels signal+2 channels 3G-SDI
Working speed: 0~200rpm

Slip Ring for Ethernet/EtherCAT

Ethernet data slip ring
Number of circuits: 20
Voltage: 380VAC/240VDC
Current: 8 channels 20A+5 channels 5A+6 channels 2A+1 channel Gigabit Ethernet signal
Working speed: 0~250rpm

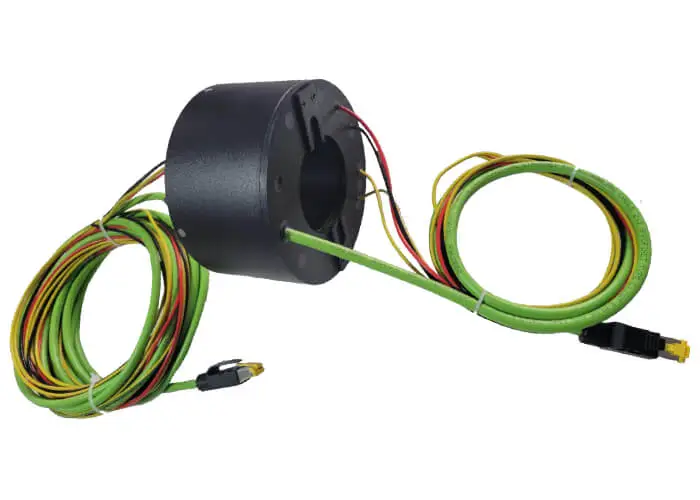

ethernet slip ring
Number of circuits: 5
Voltage: 380VAC/24VDC
Current: 4 channel 10A+1 channel 100Mbps Ethernet signal
Working speed: 0~250rpm
gigabit ethernet slip ring
Number of circuits: 26
Voltage: 24VDC
Current: 24 channels 2A+1 channel Gigabit Ethernet signal
Working speed: 0~250rpm
RJ45 Ethernet slip ring
Number of circuits: 32
Voltage: 380VAC/240VDC
Current: 6 channels 8A+25 channels 422 signal+1 channel Gigabit Ethernet signal
Working speed: 0~250rpm

Rotary Joint for Pneumatic/hydraulic/Electric

8 passage hydraulic rotary joint
Number of passages: 8
Medium: hydraulic oil
Working pressure: 25Mpa
Working TEMP: -30 ℃~+80 ℃
Working speed: Max 1000rpm
Automatic rotary table air rotary joint
Entrance thread: 3-Rc1/2 ”
Outlet thread: 6-Rc1/2 ”
Medium: air
Work pressure: 1.1Mpa
Design pressure: 1.6Mpa
Working TEMP: -30 ℃~+80 ℃
Working speed: Max 50rpm
electric hybrid slip ring
Number of circuits: 32
Voltage: 48VDC
Current: 2 channels 30A+2 channels 10A+10 channels 3A+6 channels CAN signal+12 channels Ethernet signal
Liquid channels: 4 * G1/2 ”
Medium: hydraulic oil
Working pressure: 16Mpa
Working speed: Max 10rpm
Pneumatic electric rotary joint
Number of circuits: 120
Voltage: 380VAC/240VDC
Current: power 60 channels 5A+control signal 60 channels 5A
Air Passages: 1
Medium: Compressed air
Working pressure: MAX 5Mpa
Working speed: Max 10rpm
Protection level: IP51

Microwave joint/Fiber Optical Rotary Joint/RF Slip Ring

combined optical fiber slip ring
Electric circuits: 10*2A
Fiber Optics: 2 Channels
electrical high frequency slip ring
Electric circuits: 8*10A+22*2A
Fiber Optics: 2 Channels
integrated RF optical fiber slip ring
Microwave joint: 1 channel
Fiber Optics: 4 channels
RF electrical coaxial slip ring
RF channels: 4 channels
Electric circuits: 2*20A+2*10A+4*5A+18*1A
3G-SDI channels: 2 channels

Military Defense Slip Ring

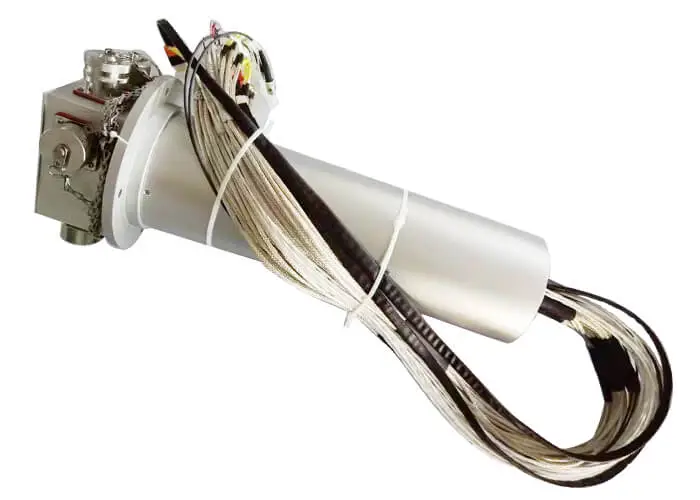

military slip ring
Number of circuits: 39
Voltage: 380VAC/240VDC
Current: 10 channels 10A+12 channels 422 signals+8 channels video signals+9 channels network signals
Fiber optic rotary joint: 2 channels
Working speed: 0~250rpm

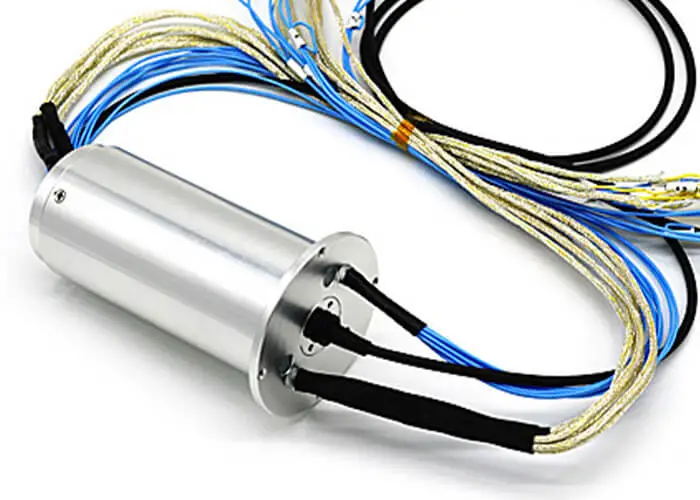

Photoelectric pod slip ring
Number of circuits: 23
Voltage: 380VAC/24VDC
Current: 6 channels 15A+7 channels 1A+10 channels signal
Working speed: 0~250rpm

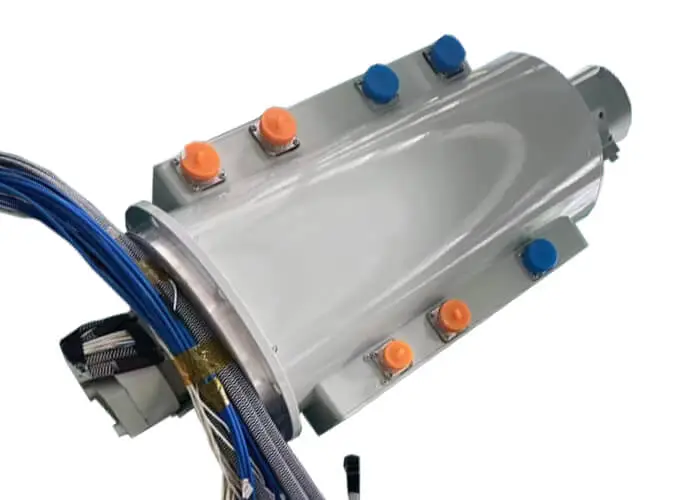

radar slip ring
Number of circuits: 48
Voltage: 380VAC/24VDC
Current: 1 channel 40A+4 channels 25A+7 channels 20A+36 channels 2A
Working speed: 0~100rpm

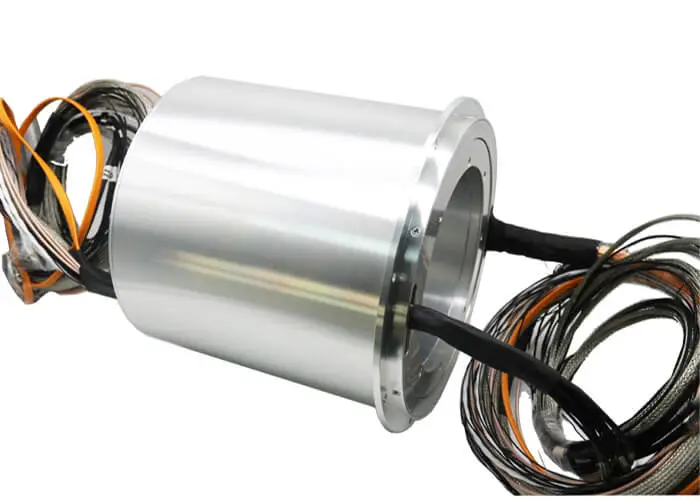

rotary table slip ring
Number of circuits: 31
Voltage: 380VAC/240VDC
Current: 10 channels 20A+12 channels 422 signals+4 channels video signals+5 channels network signals
Working speed: 0~250rpm

Large Diameter Large Hole Slip Ring

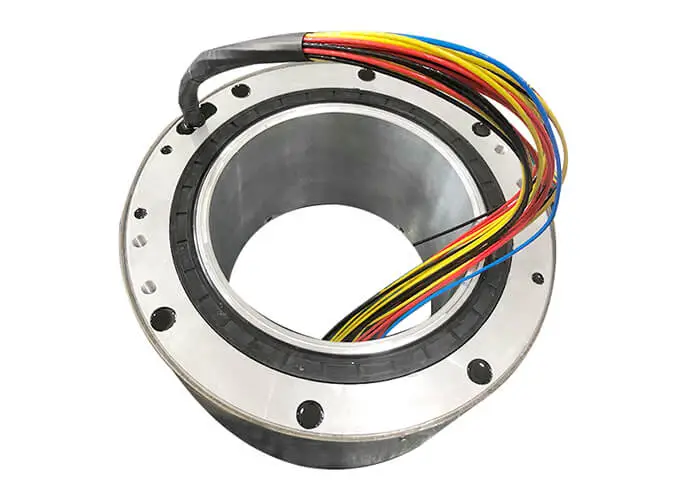

large diameter slip ring
Through hole size: 200mm
Number of circuits: 17
Voltage: 0~380VAC
Current: 12 channels 25A+5 channels 10A
Working speed: 0~250rpm

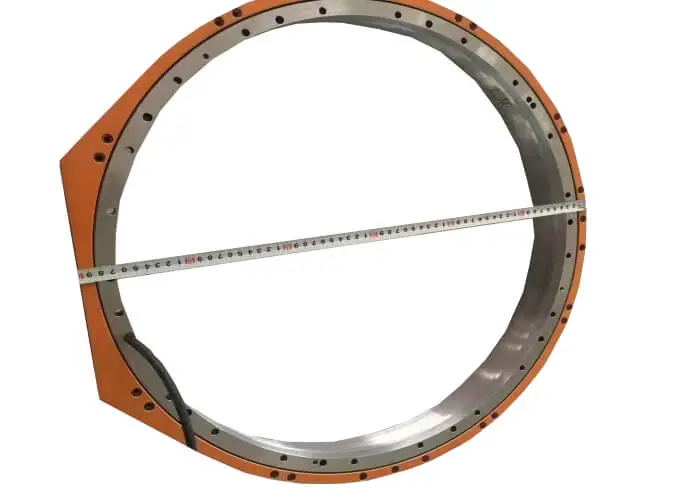

large slip ring
Through hole size: 540mm
Number of circuits: 9
Voltage: 48VDC
Current: 2 channels 15A+7 channels 5A
Working speed: 0~100rpm
Floating Crane Slip Rings
Number of circuits: 39
Voltage: 4000VAC/380VAC
Current: 6 channels 400A+3 channels 100A+3 channels PE+27 channels signal
Working speed: 0~20rpm
Working TEMP: -40 ℃~+80 ℃
Stacker reclaimer slip ring with FORJ
Number of circuits: 54
Voltage: 3200VAC/240AC/24VDC
Current: 3*800A+9*80A+7*30A+18*PE+5*signal+12*fiber optic
Working speed: 0-10rpm
Protection level: IP56

Other Structural Types Custom Slip Rings

high speed fiber optical slip ring

High Speed Single Channel Fiber Optical Rotary Joint

High temperature slip ring

Anti-corrosion High Temperature Slip Ring

pancake slip ring

30mm Height Flat Pancake Slip Ring

through hole Terminal slip ring

40 Circuits Through Hole Terminal Slip Ring
