Pancake PCB Slip Ring

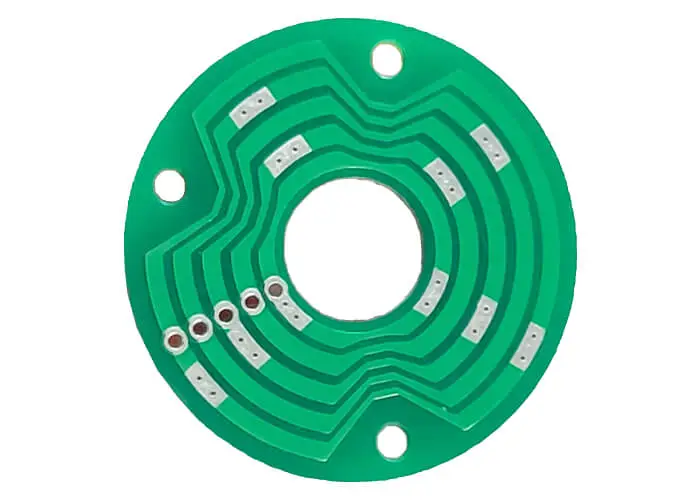

PCB slip ring is a solution for equipment with limited axial space. In a PCB (Printed Circuit Board) slip ring, we use printed circuits and conductive tracks on the PCB, rather than traditional brushes and rings. Besides the ring path is arranged in a concentric circle on the same horizontal plane, saving height space. Certainly forElectrical Connector with 360° Rotating.
Falt pancake slip ring can provide solid and different sized through-hole options. The separated electrical connector is composed of a separated rotor and stator, which can meet strict height requirements. Customers can install it independently according to the application environment.
Large disc pancake slip rings are usually customized and generally not available as standard products. We can provide relevant product drawing for reference.
Please contact us immediately if you have special needs, our sales engineers can recommend slip ring models or design customized slip rings for you.
Pancake Slip Ring Model List
Features
● 360 ° continuous rotation transmission of power or data signals
● Adopting advanced light contact technology, the appearance is compact
● Ensure low friction, low contact resistance, and no friction debris
● Transmit analog and digital signals, compatible with data bus protocols
● Ultra long service life, maintenance free
Options
● Current and voltage of PCB slip ring
● Output wires direction
● Inner diameter, outer diameter, length
● Wire length of pancake PCB slip ring
● Working speed
● Connecting terminals
Industrial automation, medical equipment, measuring instruments, robots
Of course, just send us an email with inquiry.
We focus on custom slip ring and rotary joint for 15 years. Cases can be provided for reference.
We are very good at one-to-one communication for complex slip ring or rotary joint products, based on our experience. If you can’t find a suitable supplier for your custom case, please try us.
