CH Semi Embedded Rotary Union
● Semi embedded rotary union is special structure for steelmaking and continuous casting cooling rollers in the steel industry, resistant to thermal radiation
● CH semi embedded rotary union with balanced mechanical seal structure, long service life
● Silicon carbide sealing ring structure, resistant to impurities
● Oil-free bearings are self-supporting and rotate smoothly
● Corrosion-resistant materials, rotary joint can be used in water-filled environments for a long time
Please contact us immediately if you have special needs, our sales engineers can recommend slip ring models or design customized slip rings for you.

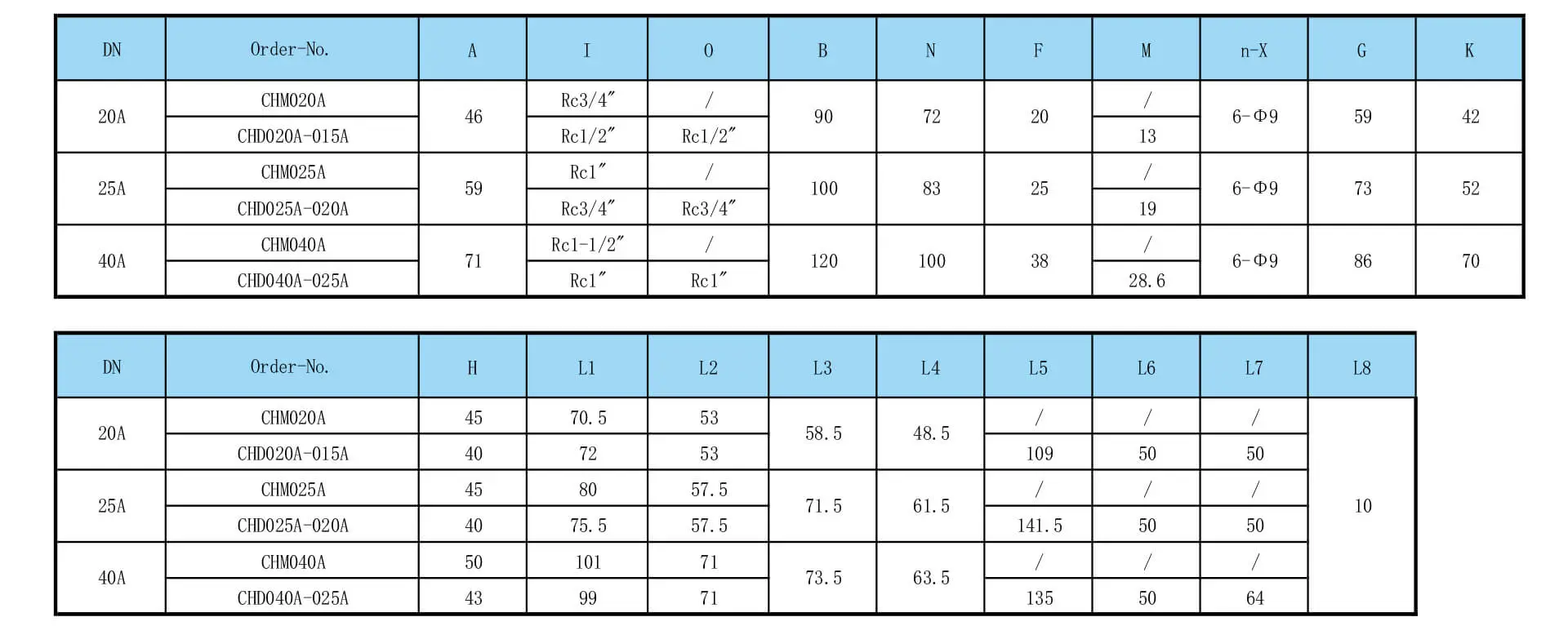

Technical Parameter
CH Rotary Union Max Speed:100 r/min
Temperature:-30℃～+120℃
Max Pressure:1.1Mpa
Media: Water
Rotary Union Notes

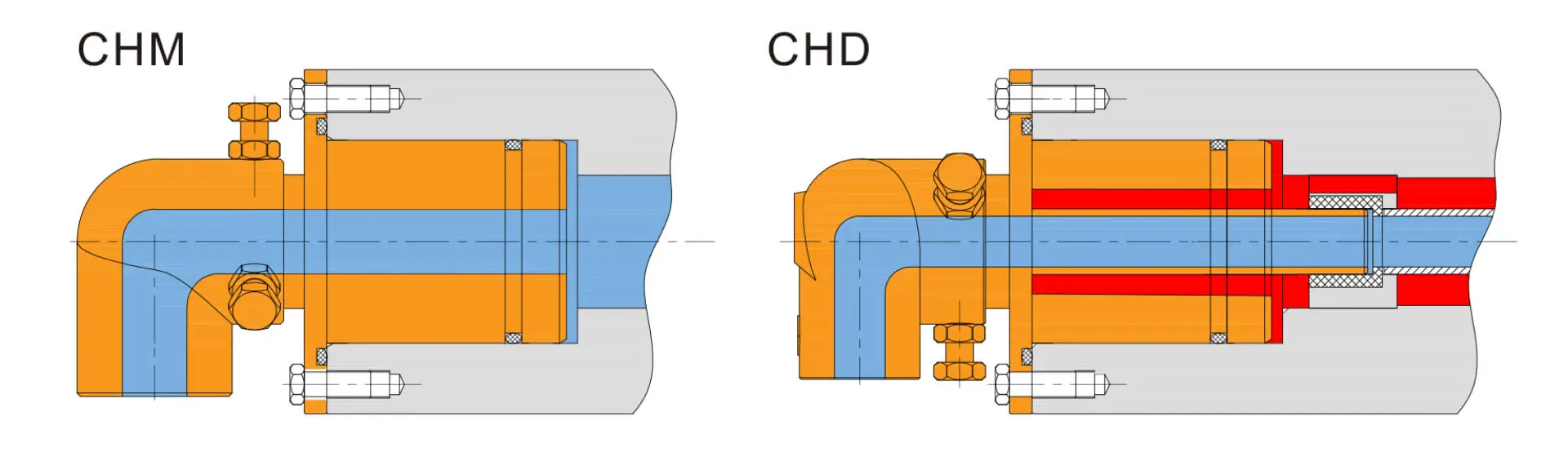

● Semi embedded rotary union/rotary joint
● For high temperature, please reach out to WAYDUN for further information
