CK Rotary Union Series

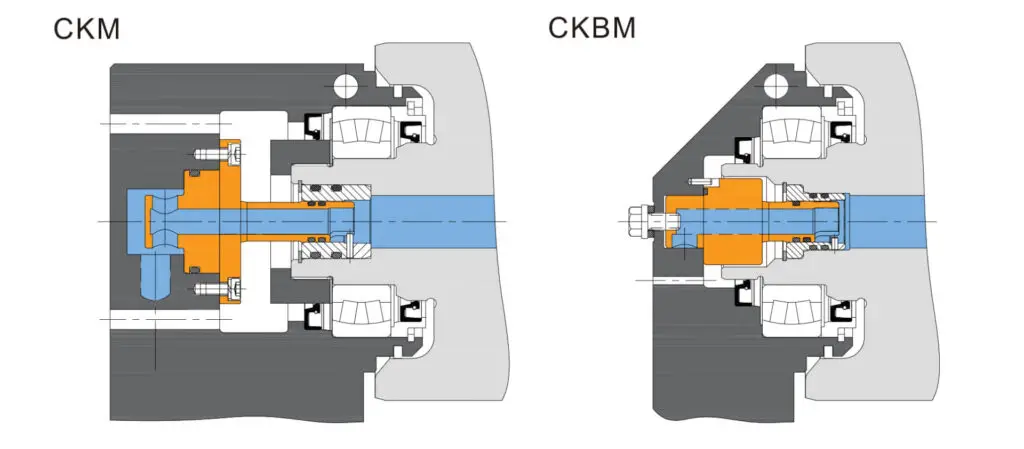

● CK rotary union is completely embedded inside the bearing cover and roller, with no pipes outside
● CK rotary union balanced mechanical seal structure, long life
● Silicon carbide sealing ring structure, resistant to impurities
● Disassemble the sealing bag structure at the production site, saving 60% of maintenance costs
● Floating structure, can withstand ±0.5mm shaft head runout
● The rotary union multi-spring structure, stable compensation spring force
● Maximum 10mm axial compensation for thermal expansion of cooling roller
● The overall stainless steel material can be used in water-filled environments for a long time
Please contact us immediately if you have special needs, our sales engineers can recommend slip ring models or design customized slip rings for you.
Technical Parameter
Max Speed:100 r/min
Temperature:-30℃～+120℃
Max Pressure:1.1Mpa
Media: Water
CK Rotary Union Notes
● Semi embedded rotary union/rotary joint
● For high temperature, please reach out to WAYDUN for further information
This type of rotary joint / rotary union is mainly used in the steel industry.
