Military Defense Slip Ring And Rotary Joint
WayDun Defense Slip Ring And Rotary Joint

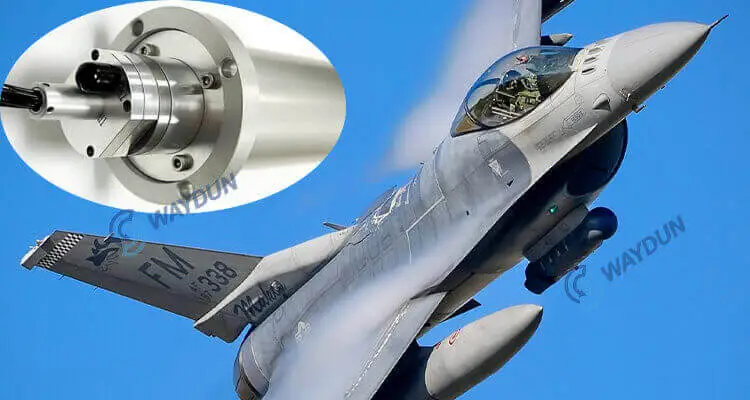

WayDun Technology design and produce various defense hybrid slip rings, power slip rings, intermediate frequency slip rings, signal slip rings, fiber optic rotary joint, and military conductive slip rings for satellites, radar, turret, centrifuge, winch, turntable.
In the high-end fields of defense radar, aerospace, tanks and other equipment, there are often requirements for multiple relative movements such as revolution and rotation. While the mechanical equipment rotates continuously 360 degrees, multiple movements are also required on the rotating body. When there is movement, energy is needed, such as electrical energy, fluid pressure energy, etc. Sometimes, it is also necessary to control signal sources, such as fiber optic signals, high-frequency signals, etc. Slip ring and rotary joint can be applied to any electrical component that needs to transmit functional power, weak current signals, optical signals, air pressure, water pressure, oil pressure, and other different energy media for continuous 360 ° rotation.
WayDun defense Slip Rings have been widely used in the military field, including vehicle rangefinders, gun sights, pilots, airborne radar, LiDAR, inertial navigation turntables, measurement and control turntables, electro-optical pods, ship electric thrusters, missile launches, defense systems, unmanned aerial vehicles (aerial photography), etc.
WayDun defense rotary joint and slip ring not only have stable performance, long service life and maintenance free. But also fully meet the special requirements of military equipment in different application fields, such as high protection level, explosion-proof, anti vibration, anti impact, high and low temperature resistance, high voltage resistance, low electrical noise, extremely low signal transmission loss.
For many years, WayDun has maintained long-term close cooperation with multiple defense units and has become their customized supplier of conductive slip rings and rotary joints. We offer professional pre-sales design and after-sales installation guidance services.
Radar systems require high-quality signal integrity to ensure accurate target detection and tracking. Slipring connector must minimize signal loss and interference. Which can be achieved through careful design and material selection.
Key Features of Military Slip Ring and Rotary Joints
The military slip rings and rotary joints need to meet stringent military standards for durability, reliability, and performance in demanding environments.
Products Durability
Built to withstand extreme conditions, including high temperatures, humidity, dust and vibration. They often comply with military specifications such as MIL-STD-810.
Signal Integrity
Designed to minimize signal loss and interference, ensuring reliable communication and data transmission critical for military operations.
Compact Design Connector
Often lightweight and compact to fit within the confined spaces of military equipment, such as UAVs, radar systems, and armored vehicles.
Multi-channel Capability
Can support multiple circuits, including power, RF (radio frequency), and data signals, allowing for versatile integration into complex systems.
Rotary Joint and Slip Ring Customization
Tailored to meet specific requirements based on the application, including the number of channels, signal types and environmental protections.
Which Military Defense Need Rotary Joint or Slip Ring?
Ground-based and Airborne Radars. Used for target detection and tracking, requiring continuous rotation without interruption of power and data signals.
Unmanned Aerial Vehicles (UAVs)
Drones. Slip rings facilitate the rotation of gimbals and sensor packages, allowing for real-time data transmission during flight.
Defense Naval Platforms
Warships and Submarines. Used in radar and sonar systems, as well as in weapon systems like missile launchers and rotating gun turrets.
Armored Vehicles

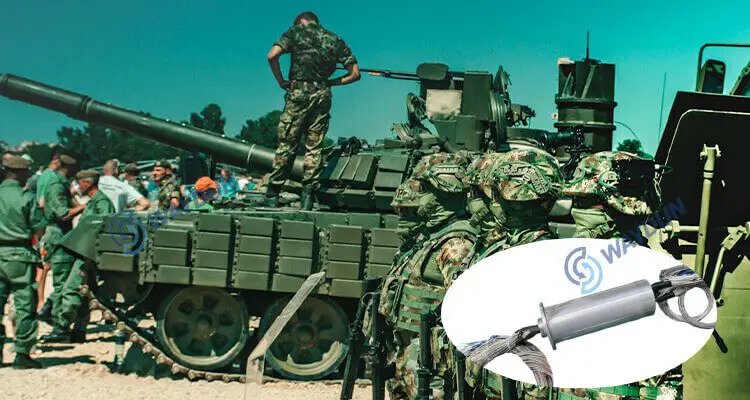

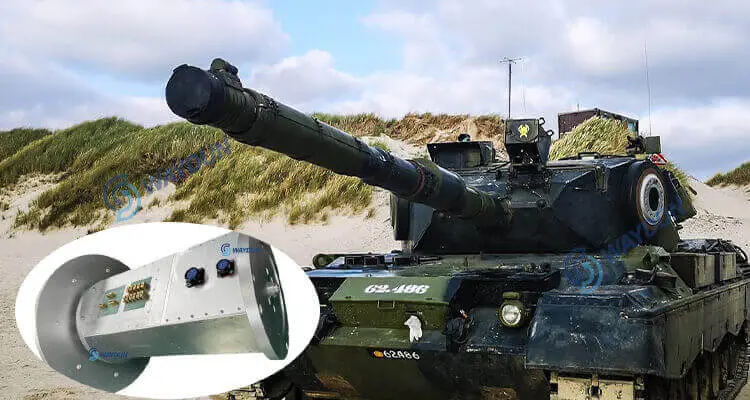

Tanks and Personnel Carriers. Rotary joint and slip rings are essential for turret movement, connecting various electronic systems such as targeting and communication devices.
Electronic Warfare Systems
Jamming and Surveillance Equipment. Used in systems that need to maintain connectivity while maneuvering to disrupt enemy communications.
Satellite Communication Systems
Ground Stations and Mobile Platforms. Support the rotation of satellite dishes while ensuring uninterrupted data transfer.
Ground Control Stations
Command and Control Systems. Slip rings enable the integration of multiple signal paths in mobile or fixed control centers.
Robotic System Defense Slip Ring
Military Robotics. Used in robotic vehicles or manipulators that require continuous movement and operational control.
Missile Guidance Systems
Guidance and Control Mechanisms. Allow for precise targeting and adjustments during flight. Mini slip rings type, reach up to 60 or 80 channels.
