Model | Power rings/10A | Signal rings/5A | ID(mm) | Height(mm) |

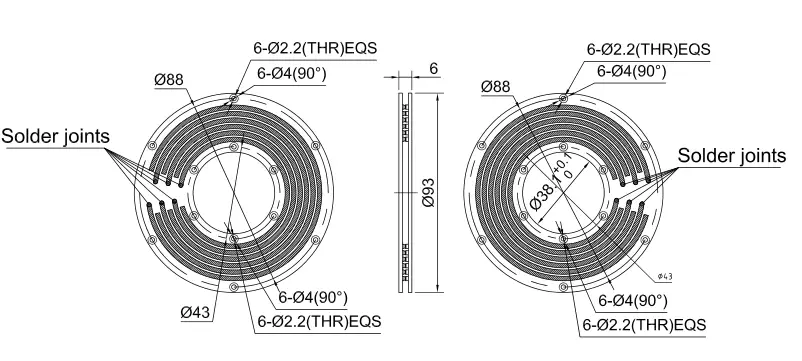

WDPC038-6S | 0 | 6 | 38.1 | 6 |
WDPC038-2P/4S | 2 | 4 | 38.1 | 6 |
WDPC038-3P/3S | 3 | 3 | 38.1 | 6 |
WDPC038-4P/2S | 4 | 2 | 38.1 | 6 |
WDPC038-6P | 6 | 0 | 38.1 | 6 |

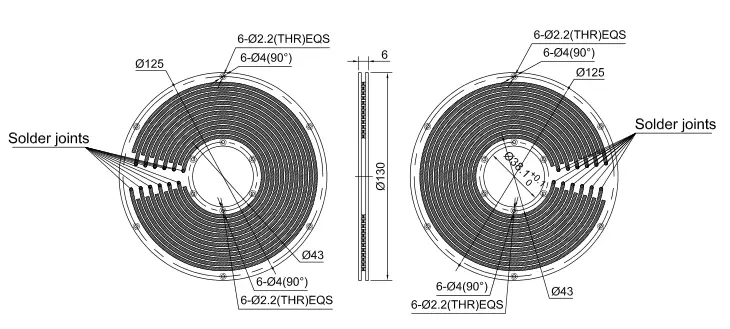

WDPC038-12S | 0 | 12 | 38.1 | 6 |
WDPC038-2P/10S | 2 | 10 | 38.1 | 6 |
WDPC038-4P/8S | 4 | 8 | 38.1 | 6 |
WDPC038-6P/6S | 6 | 6 | 38.1 | 6 |
WDPC038-8P/4S | 8 | 4 | 38.1 | 6 |
WDPC038-10P/2S | 10 | 2 | 38.1 | 6 |
WDPC038-12P | 12 | 0 | 38.1 | 6 |
Electrical Data | Mechanical Data | |||
| Power | Signal | Max. Speed | 0-100 rpm |
Rated Current | 10A | 5A | Working Temperature | -30℃~+80℃ |
Rated Voltage | 0~440VAC/VDC | 0~440VAC/VDC | Working Humidity | 0-85% RH |
Insulation Resistance | ≥1000MΩ/500VDC | ≥1000MΩ/500VDC | Structure Material | Insulating plate |
Dielectric Strength | 500VAC@50Hz,60s | 500VAC@50Hz,60s | Contact material | Precious metal |
Wire Length | Standard 250mm(adjustable) | Protection level | IP51 | |
DynamicResistance | ＜0.01Ω | |||
