Pneumatic electrical slip ring – MQR2

The connection method of the pneumatic electrical slip ring can be selected according to the working situation. The entrance of the transmission medium can freely choose to enter from the side or back according to the working conditions. While the sealing surface and sealing ring are made of special materials. Which are resistant to damage, long service life, corrosion-resistant and do not leak. There are two precision bearings inside the pneumatic electrical slip ring, which operate smoothly and persistently. As well as sturdy and flexible, low coefficient of friction and can therefore operate at high speeds. It can transmit media such as power, water, steam, oil or air.

Model	Passages	Circuits(2A)	Torque	Negative Vacuum	Max. Pressure	Max. Speed

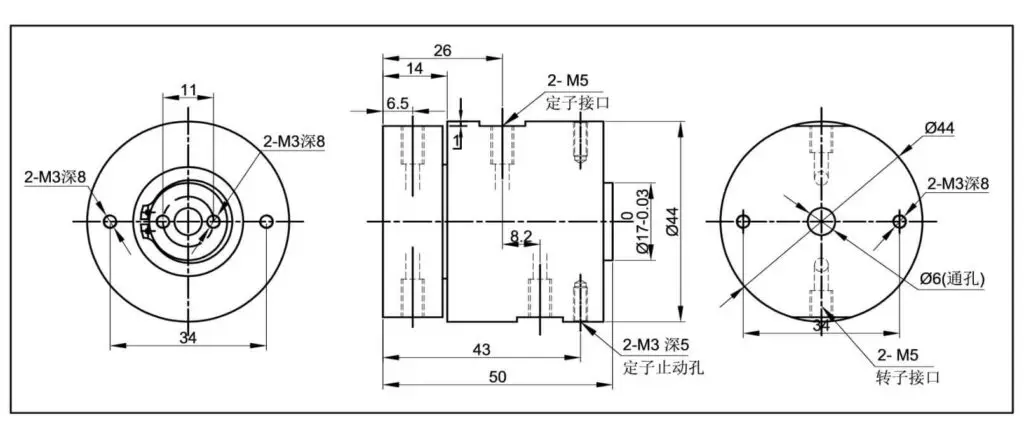

MQR2	2 Passages, Port M5	/	0.2N.m	-1.5kPa	1Mpa	300rpm

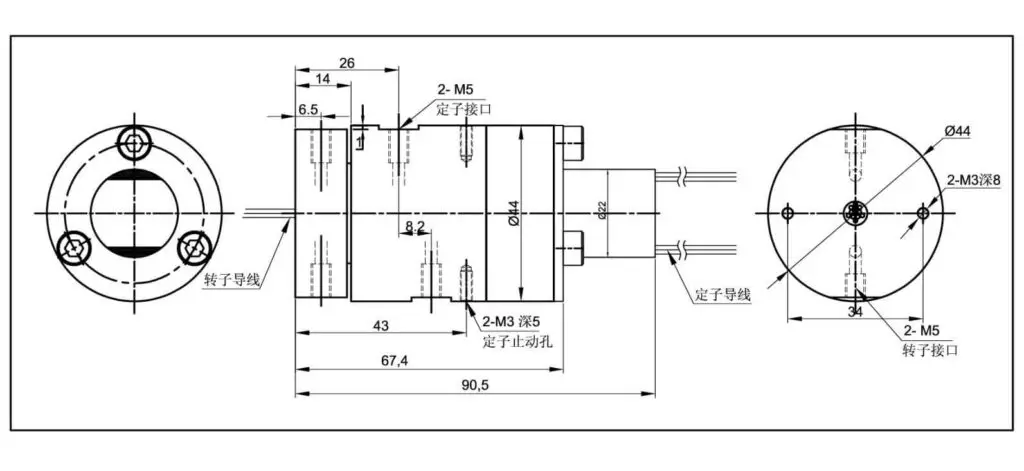

MQR2-S12	2 Passages, Port M5	12 Circuits	0.2N.m	-1.5kPa	1Mpa	300rpm

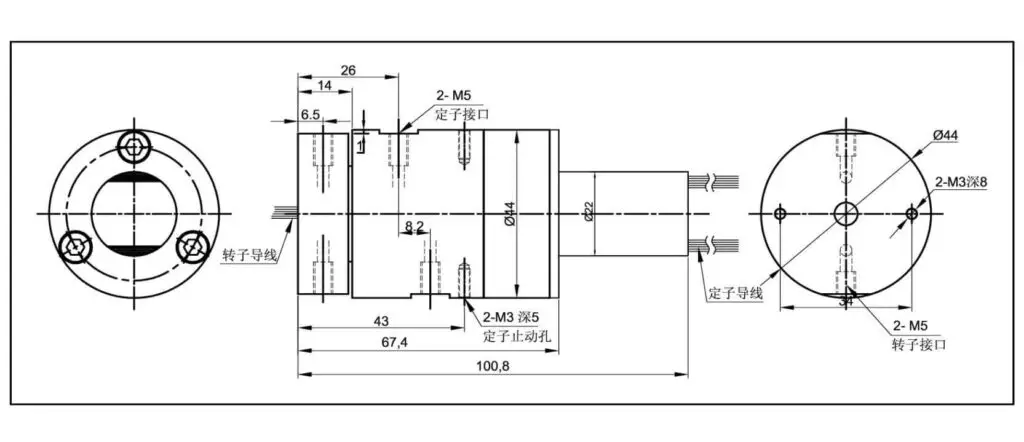

MQR2-S24	2 Passages, Port M5	24 Circuits	0.2N.m	-1.5kPa	1Mpa	300rpm

Passages	2 Passages	Max. Pressure	1Mpa
Negative Vacuum	-1.5Kpa	Max. Speed	300rpm
Housing Material	Stainless Steel/Aluminum Alloy	Working Temperature	-40℃-+80℃
Port Size	M5	Protection Grade	IP51
Shockproof Grade	MIL-SID-810E	Working Humidity	10-85% RH
