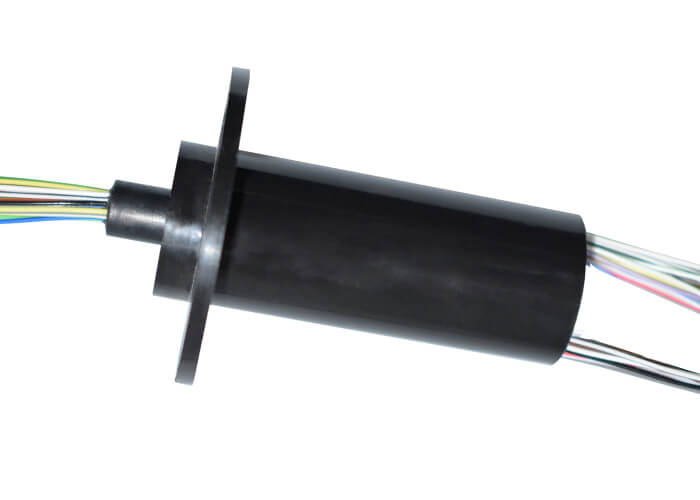

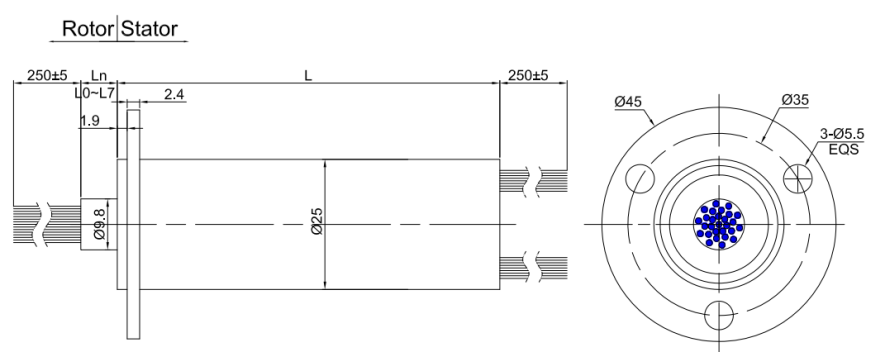

Model | No. of Rings 2A/ring | No. of Rings 10A/ring | No. of Rings 20A/ring | Rated Voltage | Length(mm) |
WDM025A-30S | 30 | — |
| 0~240V | 51.0 |
WDM025-2P/16S | 16 | 2 |
| 0~240V | 51.0 |
WDM025-3P/9S | 9 | 3 |
| 0~240V | 51.0 |
WDM025-4P/2S | 2 | 4 |
| 0~240V | 51.0 |
WDM025-2P2 |
|
| 2 | 0~240V | 51.0 |
WDM025-2P/18S | 18 | 2 |
| 0~240V | 51.0 |
WDM025-3P/15S | 15 | 3 |
| 0~240V | 51.0 |
WDM025-4P/12S | 12 | 4 |
| 0~240V | 51.0 |
WDM025-7P/2S | 2 | 7 |
| 0~240V | 51.0 |
WDM025-8P |
| 8 |
| 0~240V | 51.0 |
WDM025-2P2/12S | 12 |
| 2 | 0~240V | 51.0 |
WDM025-3P2/5S | 5 |
| 3 | 0~240V | 51.0 |
WDM025-4P2 |
|
| 4 | 0~240V | 51.0 |
WDM025-47 | 47 |
|
| 0~240V | 73.5 |
HM025-59 | 59 | — |
| 0~240V | 89.5 |
Electrical Data | Mechanical Data | ||
Rated Voltage | 0~240 VAC/VDC | Max. Speed | 0-250RPM |
Rated Current | 2A~30A/ring | Working Temperature | -20℃~+80℃ |
Lead Size | AWG32,AWG30,AWG26,AWG16,AWG14 Sliver plated Teflon | Working Humidity | 60% RH or higher |
Lead Length | Standard 250mm (adjustable) | Housing Material | Engineering plastic |
Dielectric Strength | 500VAC@50HZ,60S | Contact material | Gold to gold |
Insulation Resistance | 500MΩ/500VDC | ||
Electrical Noise | ＜0.01Ω | ||
For standard versions WDM–XX –X – XP/XS – XX ❶ ❷ ❸ ❹ ❺ ❻ |
❶ Series |
❷ Outer dimension of housing Eg, XXX= 012, the OD is 12mm |
❸ Flange type |
❹ Number of power rings Eg, X is the number of the power rings, P=10A, P1=15A, P2=20A |
❺ Number of signal rings Eg, X is the number of signal rings OR 2A rings |
❻ Special options |
