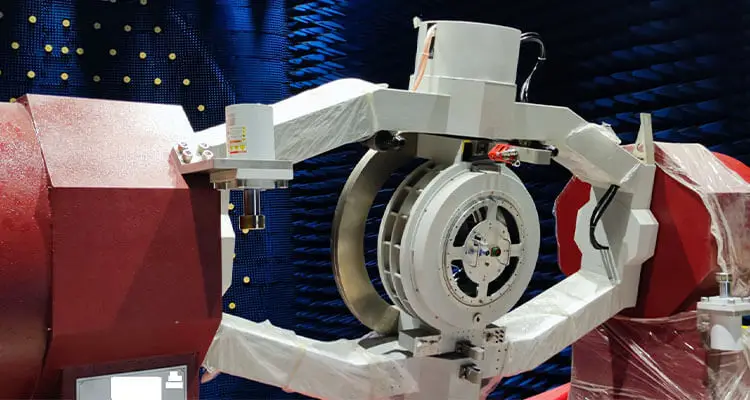

Case of Testing Turntable slip ring with rotary union

Slip ring with rotary union for testing turntable

For a turntable machine maybe requires both electrical and fluid connections. So that integrating a slip ring with a rotary union is important. Here’s a detailed overview of how to set up and test the combined system:

Products Overview

Slip Ring

Function: Transfers electrical signals and power from stationary to rotating parts.
Applications: Go through signals such as sensors and controller, power for motors.

Rotary Union

Function: Transfer medium (such as air, water or hydraulic fluid) from stationary to rotating parts.
Applications: For pneumatic or hydraulic systems, or cooling and lubrication needs.

Products Installation

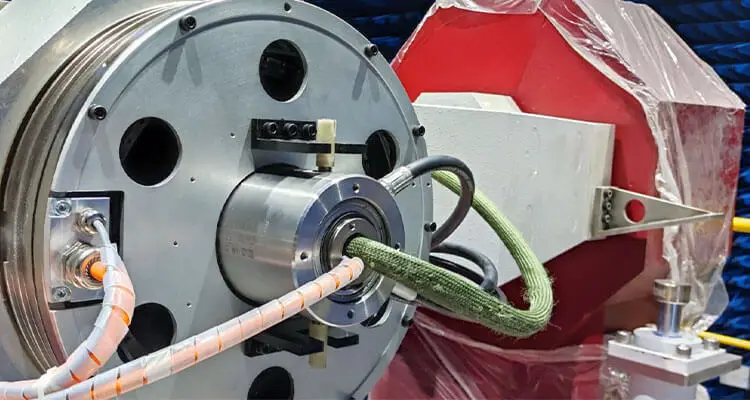

Slip Ring Install and Connections

Install electrical slip ring on the stationary part of the turntable. Secondly connect the slip ring terminals to the power source and the equipment that will receive the electrical signals. The most important thing is make sure electrical connections are secure and properly insulated.

Rotary Union Install and Connections

First thing to remember that install the rotary union on the same axis as the slip ring or in a position where it can efficiently transfer fluids without interfering with electrical connections. Secondly Connect the rotary union to the appropriate fluid source. This could be a compressed air line, hydraulic pump, or a water supply, depending on the application. The most important thing is the fluid connections are tight and leak-free.

Rotary Joint Slipring Testing

Visual Inspection

Check the alignment and physical condition of both slip ring and rotary union. Ensure there are no wires of damage, leaks or improper fittings.

Electrical Testing

Rotate the turntable slowly and check for consistent electrical continuity through the slip ring. It is good to use a multimeter to measure resistance and verify there are no interruptions in the signal.

Fluid Testing

Leak Test: Pressurize the fluid system and inspect the rotary union for any leaks. Use pressure gauges to ensure that the rotary union maintains the required pressure and flow rate.
Flow Test: Rotate the turntable and verify that the fluid flow remains consistent and uninterrupted. Check for any pressure drops or flow inconsistencies.

Operational Testing

Run the turntable through a full operational cycle, however testing it at various speeds and under different load conditions.
Observe the performance of the slip ring and rotary union under these conditions to make sure there are no issues with electrical signals or fluid transfer.

Common Fault Analysis and Clearance

If Electrical Issues Arise: Check for proper alignment and contact within the slip ring. Ensure there are no loose connections or worn components.
If Fluid Transfer Issues Occur: Inspect the rotary union for leaks or blockages. Verify that all connections are tight and that the fluid is being transferred without interruption.

slip ring rotary joint electrical connector Summary

Above all, for slip ring rotary joint electrical connector, by following these steps, you can ensure that the slip ring and rotary union work effectively together in the turntable machine. As well as providing reliable electrical and fluid transfer capabilities.
