A slip ring also known a rotary electrical joint, slipring. It provide a continuous electrical connection between a rotating part and a stationary part. Since require uninterrupted transmission of electrical signals or power while rotating. It is important for machine with a slip ring.
To grasp the intricacies of how does a slip ring work, it is essential to delve into its detailed construction, operational principles and technical considerations.

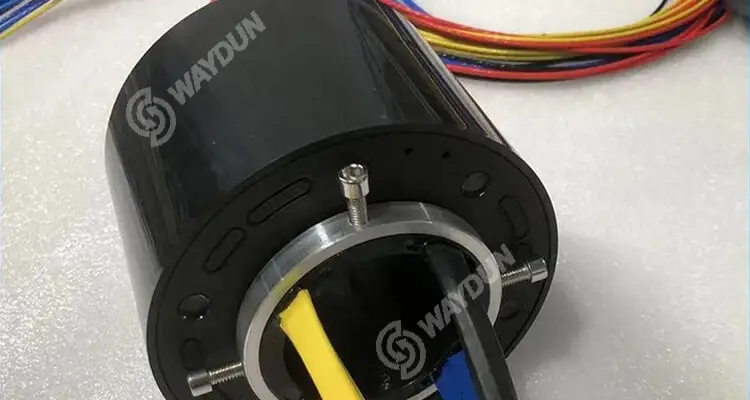

Construction and Design
A slip ring consists of several sophisticated components for transfer electrical signals or power:
Rotor
The rotor is the rotating element of slip ring, mounted on the rotating shaft of the machine. It includes one or more conductive rings, generally made from materials such as copper or silver and electrically isolate from each other. These rings are responsible for carrying electrical current while they rotate.
Stator
The stator is the stationary component, and fix to the machine. It contains stationary brushes or contacts that maintain electrical contact with the rotating rings on the rotor. The stator connect to the external power source or signal system.
Bearings
Bearings support the rotor rotate smoothly within the stator. They are designed to handle axial and radial loads while minimizing friction and wear. High-quality bearings are important for maintaining the slip ring’s performance and longevity.
Housing
The housing encloses the rotor, stator and other parts, protecting them from environmental factors such as dust, moisture or mechanical damage. It also maintains the alignment of the rotor and stator.

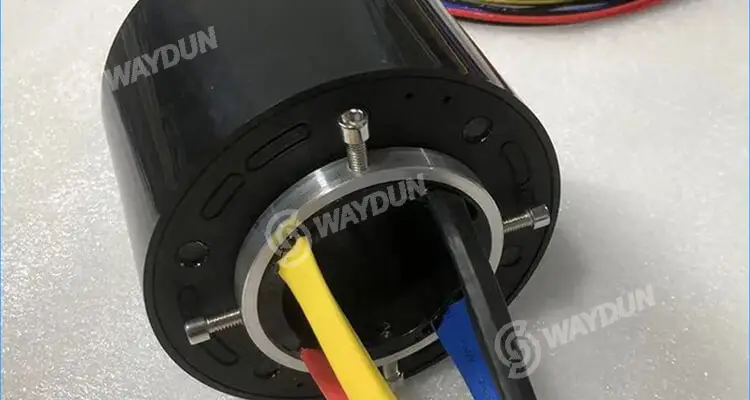

How Slip Ring Work - Operating Principle
How slip ring work? We can see the core function of a slip ring is to make continuous electrical transmission between stationary and rotating parts. Here’s a step-by-step technical explanation of how it operates:
Electrical Connection Setup
The stator connect to an external electrical system, either supplying or receiving electrical power or signals. The rotor attach to the rotating part of the machinery, contains the conductive rings that interface with the stationary brushes.
Rotational Interaction
As the rotor rotates, the conductive rings are also rotation. The brushes in the stator remain stationary and are positioned to make contact with these rotating rings. So that each brush maintains continuous contact with its corresponding ring throughout the rotation.
Signal or Power Transfer
Electrical power or signals transmit through the stator to the brushes. The brushes conduct the electrical current to the rotating rings on the rotor. The rotating rings then deliver the electrical signals or power to the rotating components of the system. This continuous connection allows for the transfer of power, data or signals without interruption.
Minimizing Electrical Noise
To make stable signal transmission, the design of the slip ring often includes provisions for minimizing electrical noise and interference. This can involve using high-quality materials for the conductive rings and brushes, as well as incorporating shielding to protect against electromagnetic interference (EMI).
Wear and Maintenance
The interaction between the brushes and the rotating rings involves mechanical contact which leads to wear over time. The slip ring’s design includes features to reduce wear, such as the use of durable materials for brushes and rings and precise alignment to minimize friction. Regular maintenance is required to replace worn brushes and ensure optimal performance.

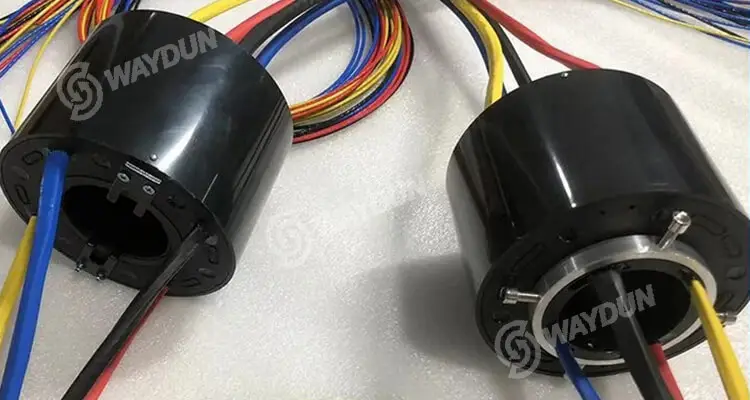

Technical Factors
How slip ring work? We should consider several technical factors when designing or selecting a slip ring for a specific application:
Current Rating
Please consider the maximum current expected in the application when design the slipring. The choice of materials for the rings and brushes impacts the slip ring’s current-carrying capacity and thermal performance.
Voltage Rating
The voltage rating of a slip ring must match the electrical requirements of the system. Insulation materials and design play a critical role in ensuring that the slip ring can handle the applied voltage without breakdown.
Speed and Rotation
The rotational speed of the slip ring affects its performance and longevity. High-speed applications require precision engineering to ensure stable operation and minimize wear. Bearings and materials must be selected to handle the specific speed and load conditions.
Environmental Conditions
Slip rings used in harsh environments, such as high temperatures, moisture or corrosive substances. Then require special design considerations. The use of sealed housings, robust materials and protective coatings help to make reliable operation in challenging conditions.
Size and Integration
The physical size of the slip ring must fit within the constraints of the machinery or system. Compact designs may be necessary for applications with limited space. Integration with other components, such as encoders or sensors should be considered during design.

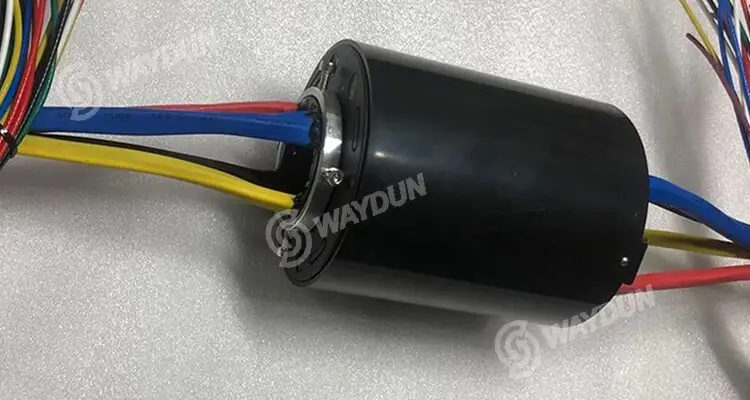

Applications
We use slip rings in a variety of applications, including:
Industrial Automation
Slip rings make the continuous rotation of equipment such as rotary tables while providing electrical power and signals.
Telecommunications
In satellite and radar systems, slip rings facilitate the rotation of antennas while maintaining continuous signal transmission.
Medical Equipments
In medical imaging devices such as MRI machines, slip rings allow for continuous rotation of imaging components while providing electrical connections.
Wind Turbines
Transfer power and control signals between the rotating blades and stationary components.
How Does a Slip Ring Work Conclusion
Above all, a slip ring is a complex electromechanical device designed to enable continuous electrical transmission between rotating and stationary parts of a system.
Its construction involves precision engineering of components such as the rotor, stator, brushes, bearings and housing. By understanding the technical principles and considerations, WayDun technology engineers can select and design slip rings meet the specific requirements for customers. Make sure for reliable performance and longevity in various operational environments.
