Capsule Slip Ring – WDM022 Series

Capsule slip rings WDM022 series with OD 22mm (4~36rings optional). Multiple shell structures available, such as without flanges. Used for transmitting signals or currents.

*All flange dimension can be as request

* MAX 30A current transmission

Category: Capsule Slip Ring

Description

Model	No. of Rings 2A/ring	No. of Rings 10A/ring	Rated Voltage	Length(mm)

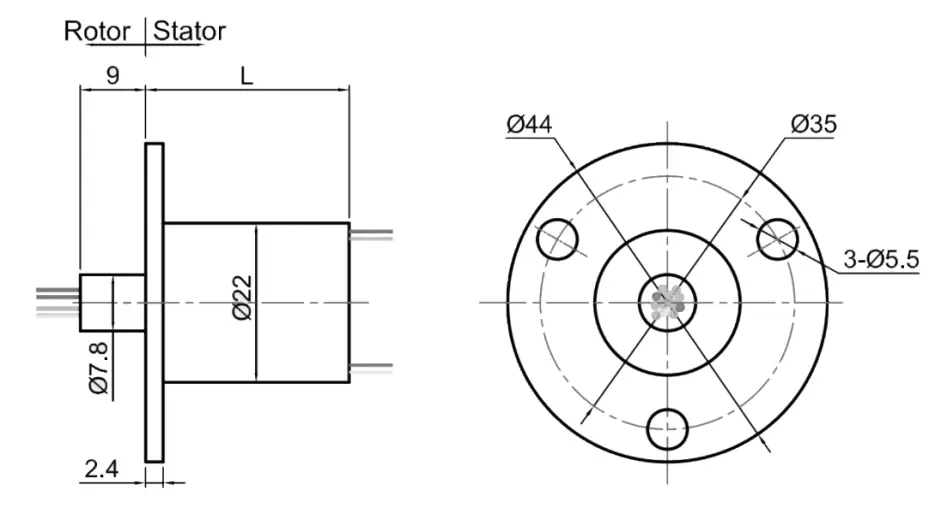

WDM022A-6S	6		0~240V	28.0
WDM022A-12S	12		0~240V	28.0
WDM022A-15S	15		0~240V	33.0
WDM022A-18S	18		0~240V	33.0
WDM022A-24S	24		0~240V	40.8
WDM022A-36S	36		0~240V	56.3
WDM022A-2P/4S	4	2	0~240V	33.0
WDM022A-2P/10S	10	2	0~240V	40.8
WDM022A-3P/3S	3	3	0~240V	40.8
WDM022A-2P/22S	22	2	0~240V	56.3
WDM022A-3P/15S	15	3	0~240V	56.3
WDM022A-4P/8S	8	4	0~240V	56.3

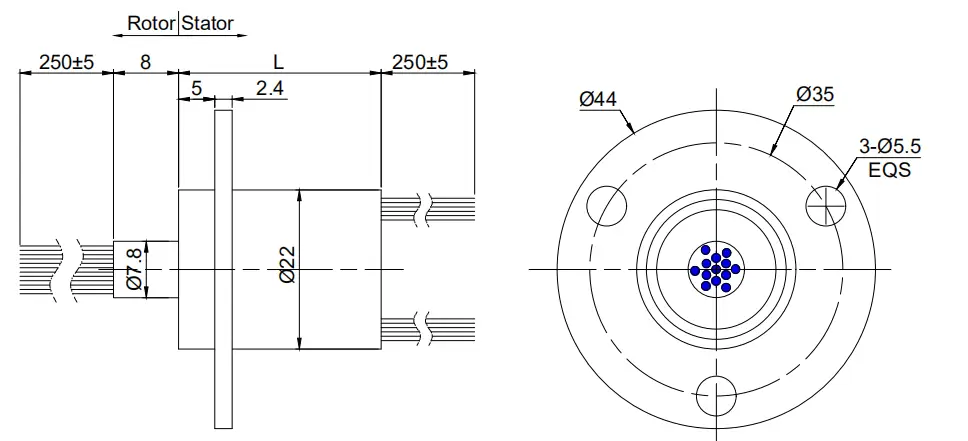

WDM022B-6S	6		0~240V	28.0
WDM022B-12S	12		0~240V	28.0
WDM022B-15S	15		0~240V	33.0
WDM022B-18S	18		0~240V	33.0
WDM022B-24S	24		0~240V	40.8
WDM022B-36S	36		0~240V	56.3
WDM022B-2P/4S	4	2	0~240V	33.0
WDM022B-2P/10S	10	2	0~240V	40.8
WDM022B-3P/3S	3	3	0~240V	40.8
WDM022B-2P/22S	22	2	0~240V	56.3
WDM022B-3P/15S	15	3	0~240V	56.3
WDM022B-4P/8S	8	4	0~240V	56.3

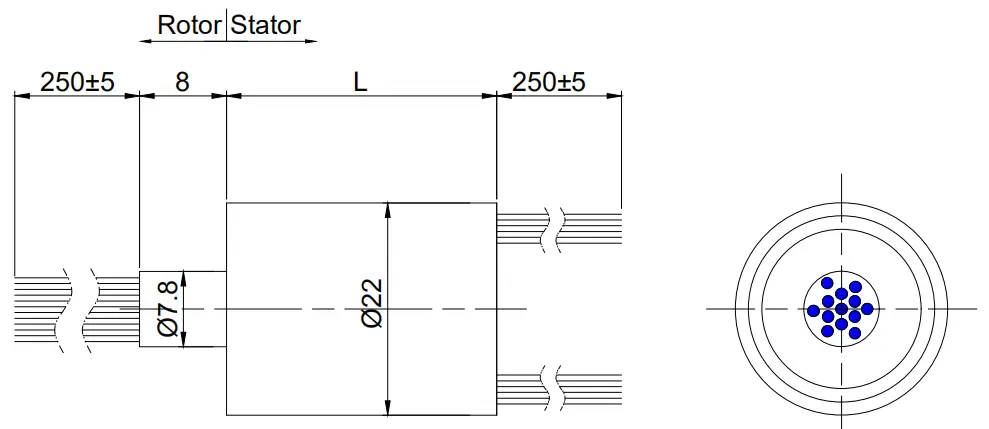

WDM022C-6S	6		0~240V	28.0
WDM022C-12S	12		0~240V	28.0
WDM022C-15S	15		0~240V	33.0
WDM022C-18S	18		0~240V	33.0
WDM022C-24S	24		0~240V	40.8
WDM022C-36S	36		0~240V	56.3
WDM022C-2P/4S	4	2	0~240V	33.0
WDM022C-2P/10S	10	2	0~240V	40.8
WDM022C-3P/3S	3	3	0~240V	40.8
WDM022C-2P/22S	22	2	0~240V	56.3
WDM022C-3P/15S	15	3	0~240V	56.3
WDM022C-4P/8S	8	4	0~240V	56.3

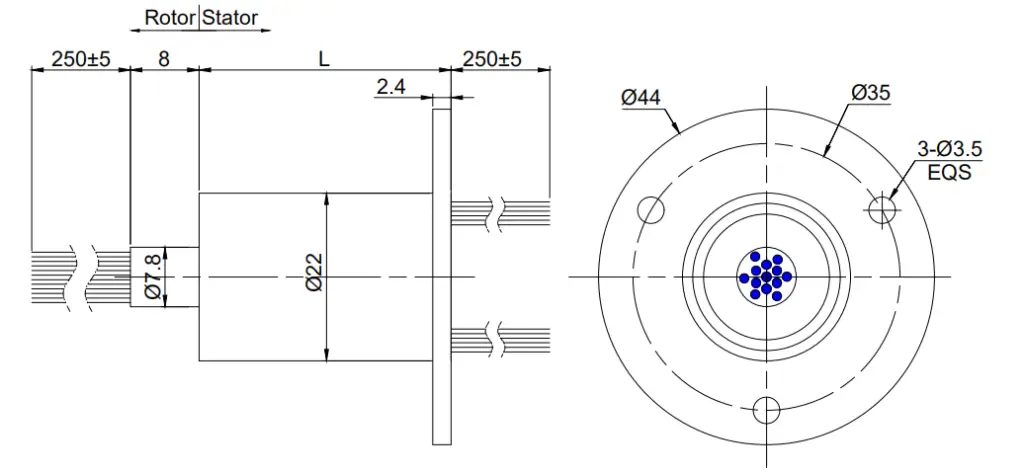

WDM022A-6S-F	6		0~240V	28.0
WDM022A-12S-F	12		0~240V	28.0
WDM022A-15S-F	15		0~240V	33.0
WDM022A-18S-F	18		0~240V	33.0
WDM022A-24S-F	24		0~240V	40.8
WDM022A-36S-F	36		0~240V	56.3
WDM022A-2P/4S-F	4	2	0~240V	33.0
WDM022A-2P/10S-F	10	2	0~240V	40.8
WDM022A-3P/3S-F	3	3	0~240V	40.8
WDM022A-2P/22S-F	22	2	0~240V	56.3
WDM022A-3P/15S-F	15	3	0~240V	56.3
WDM022A-4P/8S-F	8	4	0~240V	56.3

Electrical Data		Mechanical Data
Rated Voltage	0~240 VAC/VDC	Max. Speed	0-250RPM
Rated Current	2A~30A/ring	Working Temperature	-20℃~+80℃
Lead Size	AWG32,AWG30,AWG26,AWG16,AWG14 Sliver plated Teflon	Working Humidity	60% RH or higher
Lead Length	Standard 250mm (adjustable)	Housing Material	Engineering plastic
Dielectric Strength	500VAC@50HZ,60S	Contact material	Gold to gold
Insulation Resistance	500MΩ/500VDC
Electrical Noise	＜0.01Ω

For standard versions WDM–XX –X – XP/XS – XX

❶ ❷ ❸ ❹ ❺ ❻

❶ Series

❷ Outer dimension of housing Eg, XXX= 012, the OD is 12mm

❸ Flange type

❹ Number of power rings Eg, X is the number of the power rings, P=10A, P1=15A, P2=20A

❺ Number of signal rings Eg, X is the number of signal rings OR 2A rings

❻ Special options
