Ethernet Slip Ring – WDE022

WDE series Ethernet slip ring series are specially design for 100M and 1000M signals, can transmit 1~2 channels Gigabit Ethernet signal combine with 1~72 power rings(2~20A).

Ethernet slip rings can be customized with electrical parameters and external dimensions according to actual working conditions.

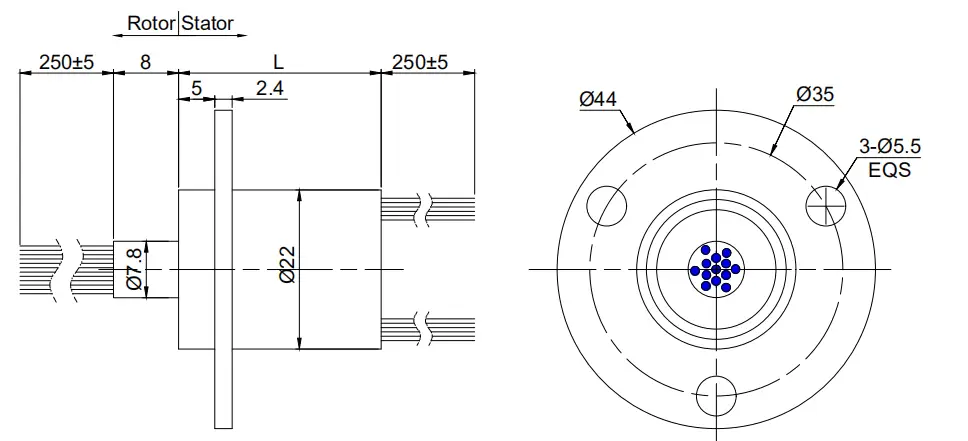

Model	No. Of power/signal			No. Of Ethernet		Length (mm)
Model	Signal (2A)	Power （5A）	Power （20A）	100M Ethernet	1000M Ethernet	Length (mm)
WDE022-E1	0	0	0	1	0	28.0
WDE022-E1-6S	6	0	0	1	0	28.0
WDE022-E1-2P5	0	2	0	1	0	28.0
WDE022-EE1-3S	3	0	0	0	1	28.0
WDE022-E1-12S	12	0	0	1	0	33.0
WDE022-E1-2P5/4S	4	2	0	1	0	33.0
WDE022-EE1-8S	8	0	0	0	1	33.0
WDE022-EE1-2P5	0	2	0	0	1	33.0
WDE022-E1-18S	18	0	0	1	0	40.8
WDE022-EE1-14S	14	0	0	0	1	40.8
WDE022-EE1-2P5/6S	6	2	0	0	1	40.8
WDE022-EE1-2P20/2S	2	0	2	0	1	40.8
WDE022-EE2-4S	4	0	0	0	2	40.8
WDE022-EE2-2P5	0	2	0	0	2	40.8

Electrical Data		Mechanical Data
100M/1000M Ethernet	1~2 channels	Working Speed	0-250rpm
Rated Voltage	0~240 VAC/VDC	Working Temperature	-20℃~+80℃
Rated Current	2A/ring, 10A/ring, 20A/ring	Working Humidity	60% RH or higher
Lead Size	Sliver plated Teflon colour coded AWG26(2A),AWG22(5A), AWG14(20A)	Housing Material	Engineering plastic
Lead Length	Standard 250mm (adjustable)	Contact material	Precious material
Dielectric Strength	500VAC@50HZ,60S	IP rating	IP51~IP68
Insulation Resistance	500MΩ/500VDC
Electrical Noise	＜0.01Ω

For standard versions WDE XXXX –XX–XP/XS –XXX

❶ ❷ ❸ ❹ ❺ ❻

❶ Ethernet slip ring series

❷ Dimension of housing; Eg, XXX= 022, the OD is 22mm, XXXX=2578, the ID is 25.4mm, the OD is 78mm

❸ Number of Ethernet channels

Eg, XX=E1, means 1channel for 100M base T;

XX=E2, means 2channels for 100M base T;

XX=GE1, means 1channel for 1000M base T;

XX=GE2, means 2channels for 1000M base T;

❹ Number of power rings; Eg, X is the number of the power rings, P5=5A, P10=10A, P20=20A

❺ Number of signal rings; Eg, X is the number of signal rings

❻ Special options
