Model | Current/Signal circuits | ID(mm) | OD(mm) | Max Speed(rpm) |

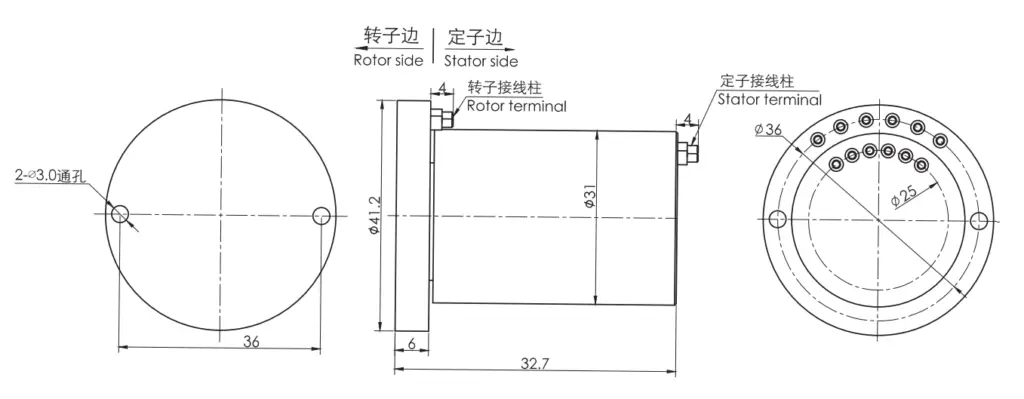

WDH0031-06 | 6 circuits, 1A | / | 31 | 12000 |

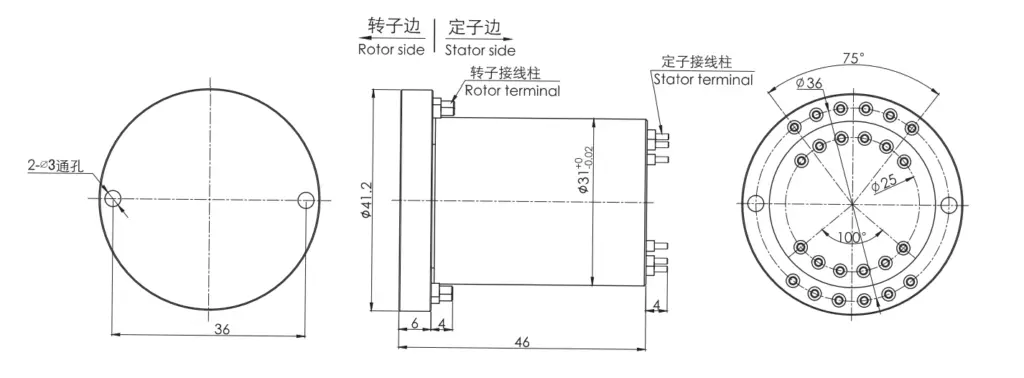

WDH0031-12 | 12 circuits, 1A | / | 31 | 12000 |
Electrical Data | Mechanical Data | ||
No. of Rings | 6-12 rings | Outer Diameter | 20mm |
Rated Current | 1A/ring | Max Speed | 12000rpm |
Rated Voltage | 0-240VAC/VDC | Working Temperature | -20℃~+80℃ |
Dielectric Strength | 300VAC@50HZ,60S | Working Humidity | 0~85% RH |
Insulation Resistance | 300MΩ/300VDC | Structure Material | Aluminium alloy |
Electrical Noise | ＜0.01Ω | Contact Material | Precious metals |
Lead Length | Terminal post | IP Rating | IP51 |
