Model | Current/Signal circuits | ID(mm) | OD(mm) | Max Speed(rpm) |

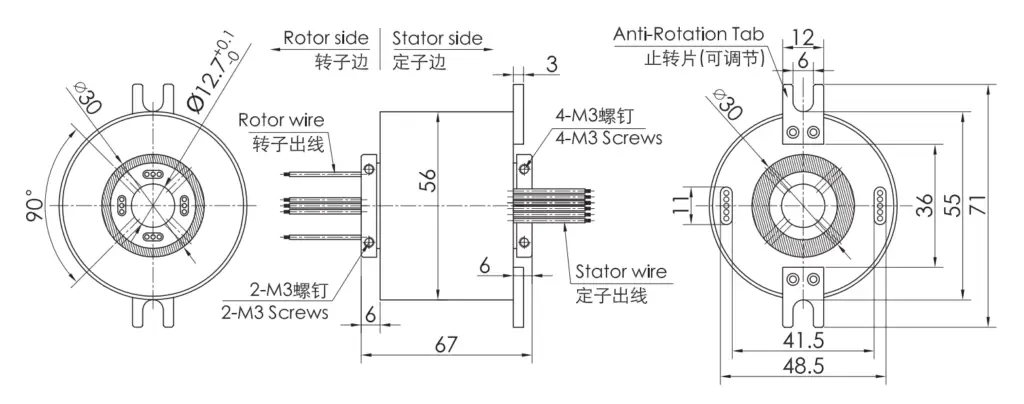

WDH1256-12 | 12 circuits, 5A | 12.7 | 56 | 1500 |
Electrical Data | Mechanical Data | ||
No. of Rings | 12 rings | Outer Diameter | 56mm |
Rated Current | 5A/ring | Max Speed | 1500rpm |
Rated Voltage | 0-440VAC/VDC | Working Temperature | -20℃~+80℃ |
Dielectric Strength | 500VAC@50HZ,60S | Working Humidity | 0~85% RH |
Insulation Resistance | 1000MΩ/500VDC | Structure Material | Aluminium alloy |
Electrical Noise | ＜0.01Ω | Contact Material | Precious metals |
Lead Length | 500mm | IP Rating | IP51 |
