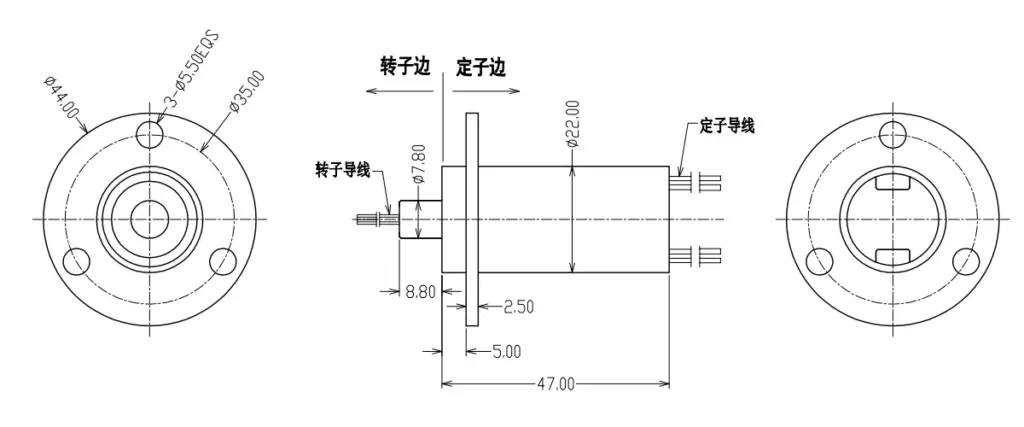

Model | No. of Rings 2A/ring | No. of Rings 10A/ring | No. of Rings 20A/ring | Rated Voltage | Length(mm) |
WDF022-6S | 6 |
|
| 0~240V | 35.0 |
WDF022-12S | 12 |
|
| 0~240V | 35.0 |
WDF022-15S | 15 |
|
| 0~240V | 40.0 |
WDF022-18S | 18 |
|
| 0~240V | 40.0 |
WDF022-24S | 24 |
|
| 0~240V | 47.8 |
WDF022-36S | 36 |
|
| 0~240V | 63.3 |
WDF022-18-2P/4S | 4 | 2 |
| 0~240V | 40.0 |
WDF022-24-2P/10S | 10 | 2 |
| 0~240V | 47.8 |
WDF022-24-3P/3S | 3 | 3 |
| 0~240V | 47.8 |
WDF022-36-2P/22S | 22 | 2 |
| 0~240V | 63.3 |
WDF022-36-3P/15S | 15 | 3 |
| 0~240V | 63.3 |
WDF022-36-4P/8S | 8 | 4 |
| 0~240V | 63.3 |
WDF022-36-2P2/6S | 6 |
| 2 | 0~240V | 63.3 |
Electrical Data | Mechanical Data | ||
Rated Voltage | 0~240 VAC/VDC | Outer Diameter | 22mm |
Rated Current | 2A/ring, 10A/ring, 20A/ring | Working Speed | 0-250rpm |
Lead Size | Sliver plated Tefloncolour coded AWG26(2A), AWG22(5A), AWG14(20A) | Working Temperature | -40℃~+85℃ |
Lead Length | Standard 250mm (adjustable) | Working Humidity | 60% RH or higher |
Dielectric Strength | 500VAC@50HZ,60S | Housing Material | Aluminium alloy |
Insulation Resistance | 500MΩ/500VDC | Contact material | Precious metal |
Electrical Noise | ＜0.01Ω | IP rating | IP65~68 |
