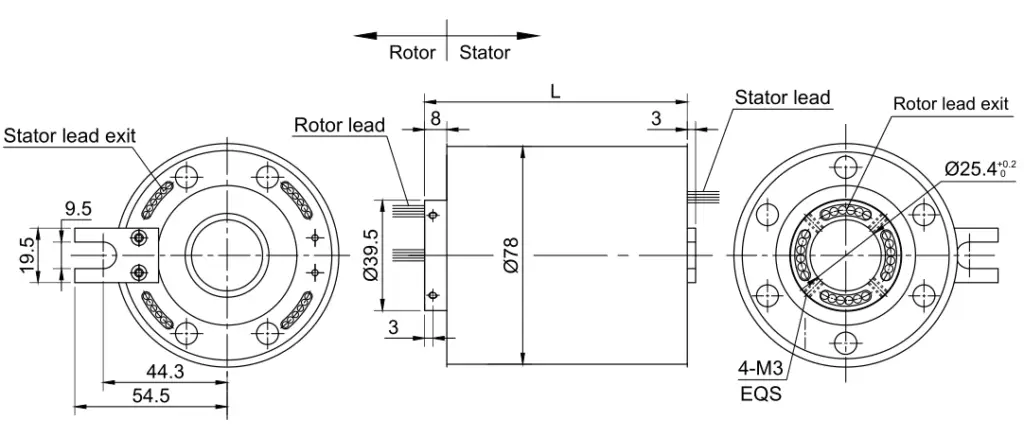

Model | Power Ring(10A) | Signal Ring(5A) | Length (mm) |
WDF2578-6P | 6 | – | 70 |
WDF2578-12S | – | 12 | 70 |
WDF2578-12P | 12 | – | 94 |
WDF2578-6P/12S | 6 | 12 | 94 |
WDF2578-24S | – | 24 | 91 |
WDF2578-18P | 18 | – | 118 |
WDF2578-12P/12S | 12 | 12 | 118 |
WDF2578-6P/24S | 6 | 24 | 118 |
WDF2578-36S | – | 36 | 115 |
WDF2578-24P | 24 | – | 142 |
WDF2578-18P/12S | 18 | 12 | 142 |
WDF2578-12P/24S | 12 | 24 | 142 |
WDF2578-6P/36S | 6 | 36 | 142 |
WDF2578-48S | – | 48 | 139 |
Electrical Data | Mechanical Data | ||
No of rings | 1~24rings | Inner Diameter | 25.4mm |
Rated Voltage | 0~240 VAC/VDC | Outer Diameter | 78mm |
Rated Current | 5A/ring, 10A/ring | Working Speed | 0-250rpm |
Lead Size | Sliver plated Tefloncolour coded AWG22(5A), AWG16(10A) | Working Temperature | -40℃~+80℃ |
Lead Length | Standard 500mm (adjustable) |
Working Humidity | 60% RH or higher |
Dielectric Strength | 500VAC@50HZ,60S | Housing Material | Aluminum alloy |
Insulation Resistance | 500MΩ/500VDC | Contact material | Precious material |
Electrical Noise | ＜0.01Ω | IP rating | IP65~IP68 |
