Foreword
After working in the fiber optic transmission and rotary joint industry for 17 years, I have consulted for hundreds of highend equipment manufacturers and tested thousands of slip ring samples. What I see today is a painful reality: China has the complete supply chain and machining capacity for fiber optic slip rings, yet still loses more than 70% of the highend market to foreign brands.
Many people blame materials, machines or capital. But after years of engineering verification, I can say firmly:
I think the real gap is not hardware. It is cognition, methodology and design philosophy.
This white paper is not just a summary of industry problems. It contains my handson engineering insights, data from real failure analysis and forwardlooking judgments that can truly help you break through localization bottlenecks.
Executive Summary

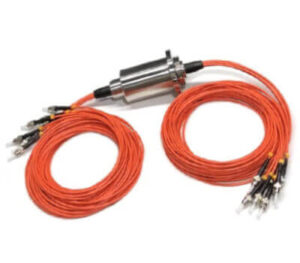

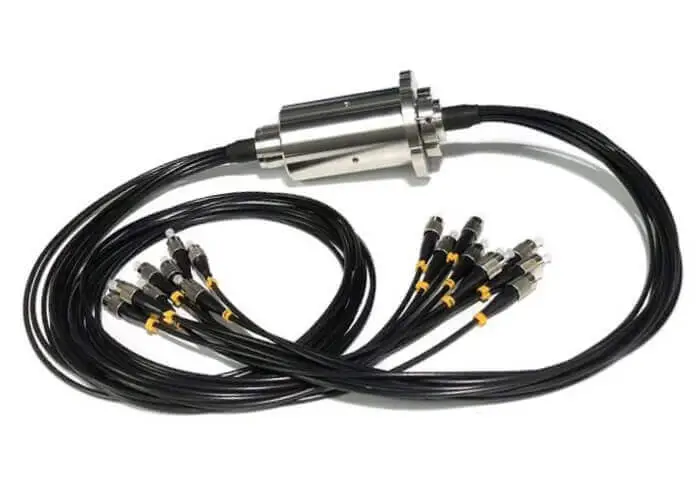

Fiber optic slip rings (FORJs) are core components for 360° rotating optical signal transmission in highend equipment. Their advantages include EMI immunity, ultrahigh bandwidth, and noncontact long life.
However, domestic manufacturers widely fall into three fatal misconceptions: overvaluing static parameters, overtrusting machining precision, and blindly stacking channels. These lead to high failure rates in aerospace, medical, and wind power applications.
My professional conclusion:
The real localization bottleneck is the absence of a fullchain forwarddesign system, not insufficient machining or materials.
This document provides:
♦ Expert judgment beyond datasheet parameters
♦ Real engineering failure mechanisms
♦ Actionable highend design paths
♦ Unique consulting suggestions for purchasers and R&D teams
Misconception One: Overemphasizing Static Room Temperature Specifications, Ignoring Full Working Condition Dynamic Performance
Industry Reality (Expert Insight)
More than 90% of domestic fiber optic slip ring manufacturers only test and mark static insertion loss at 25°C. Worse, many use partialangle testing (only 10° of 360°) to artificially optimize datasheet values. This is not technical capability—it is technical selfdeception.
Highend applications such as aerospace and wind turbines operate under:
♦ Temperature: −40°C to +85°C
♦ Continuous rotation
♦ Random vibration and shock
Static values have almost no reference meaning.
My Engineering Standard
A truly reliable highend slip ring must satisfy:
♦ Insertion loss variation ≤ 0.3 dB across full temperature, full speed, and 360° rotation
♦ Performance degradation ≤ 0.5 dB after 10,000,000+ revolutions
♦ Fullangle loss curve and full environmental test report provided with each product
Expert Thought
Low static loss means nothing. Stable dynamic performance is everything.
If a supplier cannot provide fullangle rotating test data, you should eliminate them immediately.
Misconception Two: Focusing Only on Mechanical Precision, Neglecting Multi Physics Forward Design
The Biggest Misunderstanding in This Industry
Many managers and engineers believe:
“We just need better machines to reach foreign levels.”
This is completely wrong.
Comparative Engineering Data (From My Test Lab)
Index | International Top Products | Typical Domestic Products |
Mechanical coaxiality | ≤ 5 μm | ≤ 2 μm |
Allowable offset | 10 μm, ΔIL ≤ 0.2 dB | 3 μm, ΔIL > 1.0 dB |
Core capability | Optical field robust design | Copy structure + stack precision |
Expert Analysis
Foreign products do not pursue extreme machining accuracy. They use opticalmechanicalthermalforce multiphysics coupling design to make the system naturally stable.
Domestic manufacturers copy structures without understanding optical field logic. Even with 2 μm accuracy, performance collapses under temperature or vibration.
Real Case I Personally Diagnosed
Wind power pitch slip rings often fail at −40°C.
Root cause: no thermalopticalmechanical coupling design.
Metal shrinkage and refractive index shift destroy optical alignment.
Expert Thought
Highend slip rings are designed, not machined.
The core capability is forward design, not processing.
Misconception Three: Blindly Stacking Channel Count, Underestimating Single Channel Capacity & System Matching
My View on Industry Involution
Channel count has become a meaningless marketing tool. Many companies launch 100+channel products, but:
♦ Single channel only supports 10 Gbps
♦ BER is too high for 1 Gbps
♦ Channel crosstalk > 40 dB
Cannot match real system links
Future Trend I Strongly Recommend
The next generation of highend equipment requires Tbpslevel transmission.
With WDM technology:
♦ One fiber carries 8–16 wavelengths
♦ Singlechannel capacity exceeds 100 Gbps
♦ Only 2–4 channels replace dozens of traditional channels
♦ Smaller, more stable, more reliable
Expert Warning
Fiber optic slip rings are not standalone components.
Mismatch with transceivers, fibers, and amplifiers will cause:
♦ High BER
♦ Short transmission distance
♦ Link instability
Expert Thought
The future is not more channels. It is higher singlechannel capacity and system compatibility.
Expert Deep Thinking: Real Bottlenecks & Breakthrough Path
My Core Judgment
After years of consulting, I conclude:
♦ The real bottleneck is not machines, materials, or capital
♦ It is lack of fullchain forward design system
♦ Domestic enterprises overrely on reverse engineering
♦ Lack of independent optical field design and multiphysics simulation
♦ Lowprice competition destroys longterm R&D capacity
My Strategic Suggestions
♦ Abandon static parameters; build fullcondition dynamic test capability
♦ Establish opticalmechanicalthermalforce design team
♦ Develop WDM integrated highspeed singlechannel products
♦ Provide systemlevel matching solutions, not just components
♦ Invest in longterm reliability verification, not just shortterm samples
Highend localization is not a single breakthrough. It requires complete upgrading of cognition, system and industry chain.
Expert Conclusion
From my 17 years of experience, the three most harmful misconceptions are:
♦ Overvaluing static roomtemperature data
♦ Believing machining precision solves all problems
♦ Blindly stacking channel count as technical strength
The real gap: foreign brands design from physical principles; domestic enterprises mostly copy structures.
Only by abandoning imitation, returning to optical fundamentals, and insisting on original forward design can China truly dominate the global highend fiber optic slip ring market.
My final advice to engineers and purchasers:
Do not trust beautiful datasheets. Trust fullcondition stability, multiphysics robustness, and systemlevel compatibility.
If you need:
♦ Full condition test scheme design
♦ Fiber optic rotary joint
♦ Fiber optic slip ring with electrical
We can provide you with customized expert analysis and solutions
